Weidmuller WDU 6 Feed-Through Terminal Block, 6mm², 1000V, 41A, Screw Connection, Beige, DIN Rail TS 35
PART NO:
1020200000 /
SKU:
1012091
$3.49
inc. GST
$3.17
ex. GST
Product Specification
Brand:
Weidmuller
Type:
Feed Through Terminal
Width:
7.90 mm
Colour:
Beige
Function:
Single Level Feed Through
Material:
Wemid
Blade Size:
0.80 x 4.00 mm
Cable Size:
26 to 8 AWG
Model/Series:
W
Mounting Type:
TS35 Rail Mount
Rated Current:
41 A
Rated Voltage:
800 V AC/DC
Certifications:
CCC;CE;CSA;CSAEX;cURusEX;DNV;IECEx;KEMA;KEUR;Lloyds Register;ATEX;UKCA-EX;UR E60693;RoHS;UL;INMETRO;KC KOSHAEX;NEMKO
Connection Type:
Screw
Number of Levels:
1
Stripping Length:
12 mm
Max Clamping Range:
10 mm²
Min Clamping Range:
0.22 mm²
Wire Cross Section:
6 mm²
Connection Direction:
Right
Number of Connections:
2
Max Operating Temperature:
+130 °C
Min Operating Temperature:
-60 °C
Depth:
46.50 mm
Height:
60 mm
Weight:
12.75 g
Model Part Code:
WDU 6
Product Downloads
Related Products
In Stock
$16.72
inc. GST
$15.20
ex. GST
In Stock
$4.86
inc. GST
$4.42
ex. GST
In Stock
$8.93
inc. GST
$8.12
ex. GST
In Stock
$4.96
inc. GST
$4.51
ex. GST
1820840000

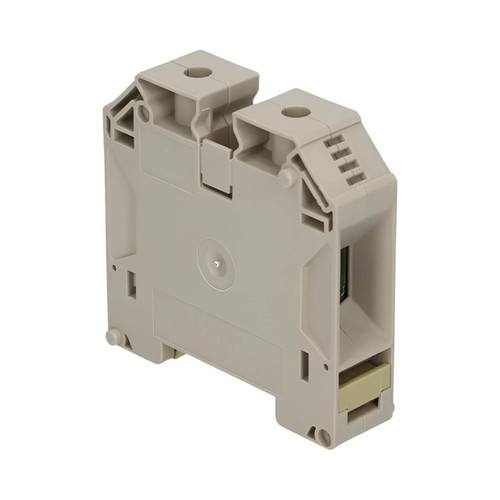

Weidmuller WDU 50N Feed-Through Terminal Block, 50mm², 150A, 1000V, Screw Connection, Beige, TS 35
