Inclinometers

Measuring

Inclinometers

Unwavering precision for static and dynamic applications.

Pacific Automation supplies a comprehensive range of Kübler inclinometers engineered for precise angular measurement in demanding industrial environments. Designed for both static and dynamic applications, Kübler inclination sensors deliver high accuracy, robust construction, and seamless system integration.

With measurement resolutions down to 0.01°, measuring ranges from 0–360° or ±85°, and protection ratings up to IP67/IP69k, these sensors provide reliable performance even in harsh environments subject to vibration, shock, dust, and moisture.

Available with analogue, CANopen, Modbus, SAE J1939 and IO-Link interfaces, Kübler inclinometers integrate easily into modern automation and mobile control systems.

Applies to
Cranes & LiftingMobile MachineryPlatform LevellingOutdoor Automation
✓ Resolution down to 0.01° ✓ Up to IP69k protection ✓ Analogue to fieldbus interfaces

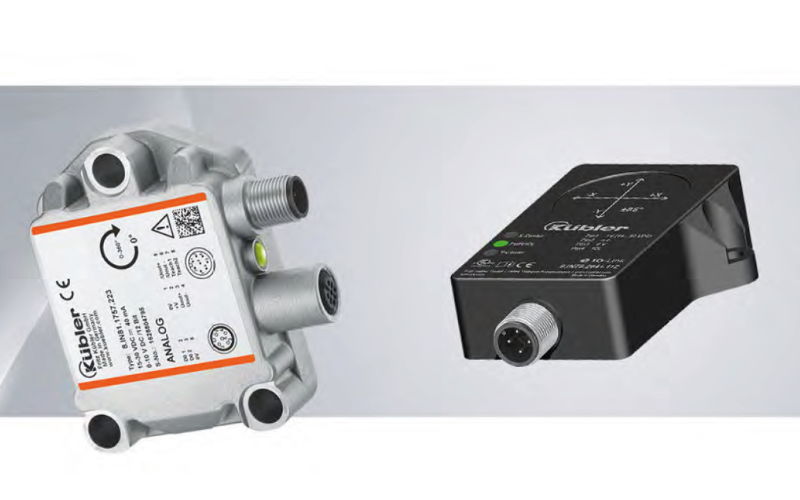

Kübler inclinometer range

It starts before the order

Three questions we ask alongside the part number, so the sensor holds its reading on the machine it is bolted to.

Question one

Where does it run?

Outdoor or in-plant, temperature range, washdown and IP rating, and how much vibration and shock the mounting sees.

Question two

What is it doing?

Continuous angle or a tilt threshold. One axis or two, the accuracy required, and whether the function needs redundancy.

Question three

What if it is wrong?

A platform out of level, a boom past its safe angle, a reading that drifts under vibration, a machine stopped.

Inclination sensors for industrial applications

Kübler inclinometers use advanced sensor fusion technology (acceleration and rotational rate) to provide stable measurement in applications exposed to motion, vibration, or dynamic movement. They are suitable for 1- or 2-dimensional measurement depending on application requirements.

Resolution
Down to 0.01°
Measuring range
0–360° or ±85°
Protection
Up to IP67 / IP69k
Temperature
-40°C to +85°C

Five inclinometer models

Redundant analogue, switching output, IO-Link, robust redundant and fieldbus. The output your control system speaks decides the model.

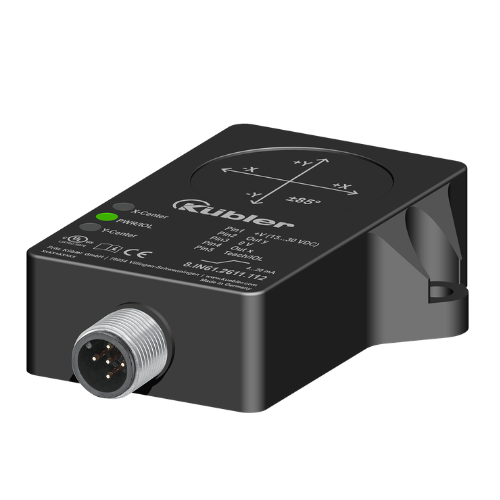

Kübler inclinometer

IN61

Redundant Analogue Inclinometer

The IN61 inclinometer is designed for precise static inclination measurement with redundant analogue outputs for continuous monitoring and safety-focused integration.

Key features
1-axis (0–360°) or 2-axis (±85°)
Redundant analogue outputs (0–10 V / 4–20 mA)
Easy-Teach via Teach Adapter
Parameterisable via PACTware
IP68 / IP69k protection
Operating temperature: -40°C to +85°C
Typical applications
Continuous angle monitoring
Platform levelling systems
Mobile machinery stabilisation
Automation systems with analogue PLC inputs

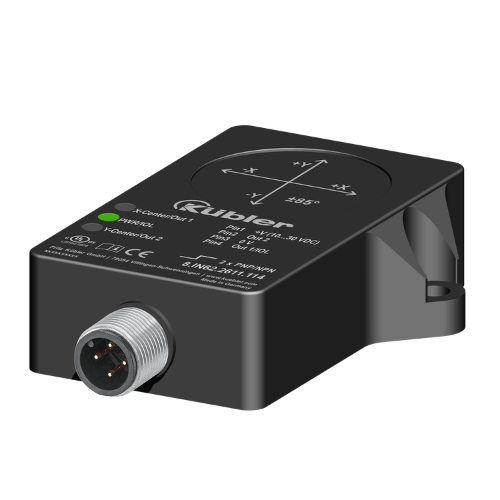

Kübler IN62 inclinometer

IN62

Switching Output Inclinometer

The IN62 inclinometer is designed for static tilt monitoring with dual switching outputs. It is suited to applications requiring threshold detection or position confirmation using PNP/NPN outputs.

Key features
1-axis (0–360°) or 2-axis (±85°)
2 switching outputs (PNP/NPN)
Simple commissioning and parameterisation
Parameterisable via PACTware
IP68 / IP69k protection
Operating temperature: -40°C to +85°C
Typical applications
Tilt limit detection
Safety position monitoring
Position confirmation
Machine status signalling
Kübler inclinometer

IN68

IO-Link Inclinometer for Static Applications

The IN68 inclinometer is designed for static inclination measurement with seamless IO-Link integration for Industry 4.0 environments. It provides reliable 1-axis (0–360°) or 2-axis (±85°) inclination measurement using an acceleration measuring cell.

Key features
1-axis (0–360°) or 2-axis (±85°) measurement
IO-Link interface for parameterisation and diagnostics
Adjustable measuring range
High accuracy (≤0.05% / ≤0.1%)
Compact housing (62.6 × 71.6 × 20 mm)
Protection rating up to IP69k
Operating temperature: -40°C to +85°C
Typical applications
Static platform levelling
Mobile machinery stabilisation
Crane and lift monitoring
Outdoor automation systems

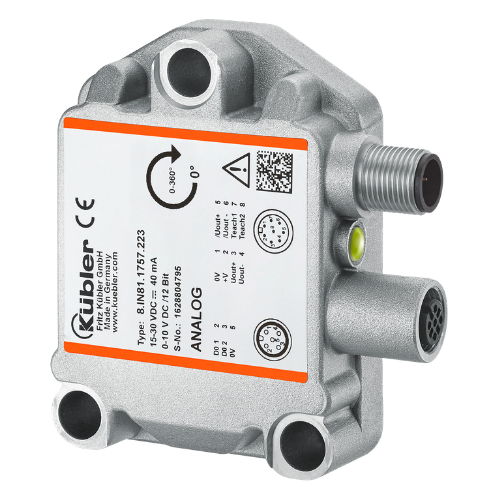

Kübler IN81 inclinometer

IN81

Robust Inclinometer with Redundant Analogue Outputs

The IN81 inclinometer is designed for precise static inclination measurement in harsh industrial and mobile environments. With redundant analogue outputs and stackable assembly capability, it is ideal for safety-relevant and reliability-critical applications.

Built for outdoor use and heavy-duty conditions, the IN81 delivers stable angular measurement with high protection ratings and wide temperature tolerance.

Key features
1-axis (0–360°) or 2-axis (±85°) measurement
Redundant analogue outputs (0–10 V, 4–20 mA, etc.)
Preset and Teach functions
Stackable design for redundancy
Protection up to IP69k
Operating temperature: -40°C to +85°C
M12 connector
Typical applications
Mobile machinery stabilisation
Crane and lift monitoring
Platform levelling
Safety-critical angle monitoring
Outdoor automation systems

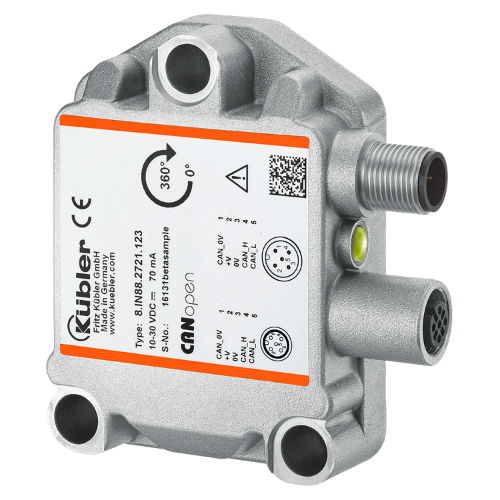

Kübler IN88 inclinometer

IN88

Fieldbus Inclinometer for Mobile & Industrial Automation

The IN88 inclinometer is a robust inclination sensor with integrated fieldbus communication, designed for precise static tilt measurement in mobile and industrial environments.

Supporting CANopen, SAE J1939, and Modbus interfaces, the IN88 enables direct integration into modern control systems while delivering high measurement accuracy and long-term reliability in harsh operating conditions.

Key features
1-axis (0–360°) or 2-axis (±85°) measurement
High accuracy (±0.1°…±0.4° depending on range)
Fieldbus interfaces: CANopen, SAE J1939, Modbus
Parameterisable filter settings
Stackable assembly for redundancy
Protection up to IP69k
Operating temperature: -40°C to +85°C
Typical applications
Mobile machinery
Crane and lifting systems
Agricultural and construction equipment
Heavy industry automation
Outdoor automation systems

Specific solutions for specific requirements

Need inclinometers? Speak to our team of specialists.

Get in Touch

Available interfaces

Contact our team for more information.

Analogue (0–10 V / 4–20 mA) Switching (PNP/NPN) IO-Link CANopen Modbus SAE J1939

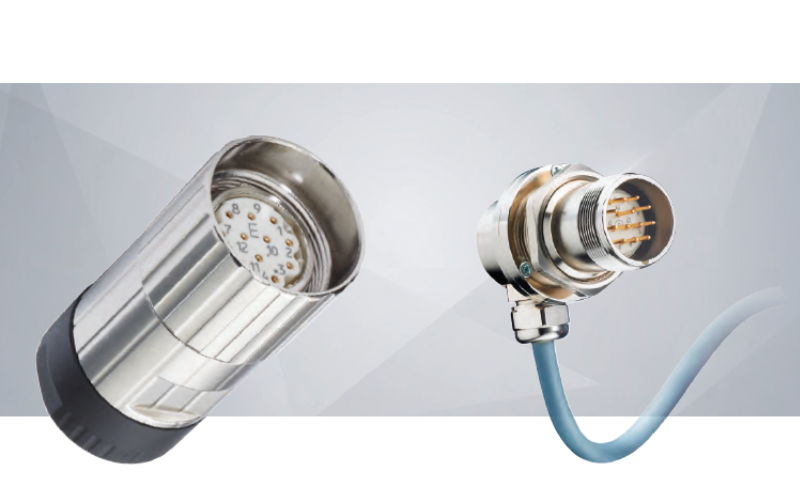

Cables and connectors

Kübler provides a complete range of industrial cables and connector solutions, including non-assembled cables, self-assembled connectors, and pre-fabricated cable assemblies to support inclinometer installations.

Browse Cables & Accessories
Kübler cables and connectors
Application and integration support

Static levelling or dynamic motion monitoring, we scope the sensor

Pacific Automation provides technical support for inclinometer selection, integration, and commissioning. Whether for static levelling or dynamic motion monitoring, our team ensures the correct sensor is selected for optimal performance and reliability.

Get in Touch

For reliable inclinometer solutions contact Pacific Automation to discuss your next project

Send us the application: the machine and mounting, one axis or two, the accuracy you need, the output your control system expects, and whether the function needs redundancy. Our team will scope the sensor to match.

We supply and support the product. Your team or your integrator installs and commissions it. We make sure it is the right one.
