The right draw-wire encoder for every application. From precise to compact to robust and cost-optimized. Kübler offers a comprehensive portfolio based on different measuring lengths. In addition to all common interfaces, innovative features such as integrated inclinometers or redundant sensors make the difference.



From analog to fieldbus – draw-wire mechanisms can be combined with a wide variety of Sendix encoders according to customer requirements. That's why we offer countless ordering options and are ready to realise modifications and special solutions for you.



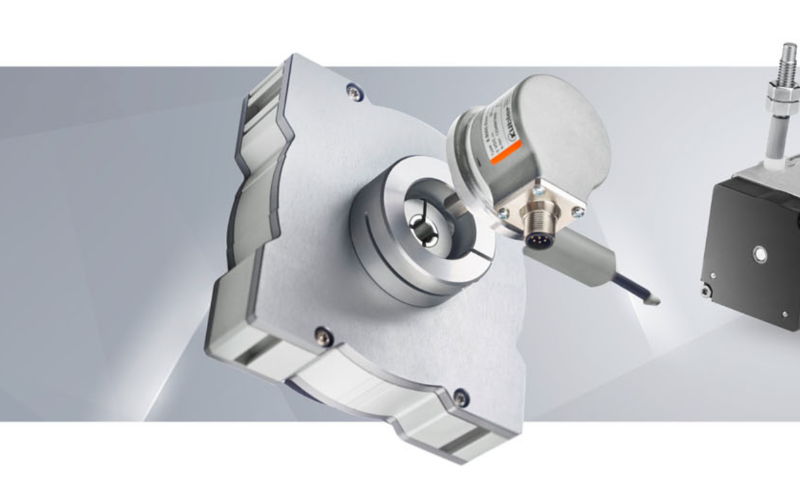

The Flattest on the Market

The B75 draw-wire encoder can be used up to a measuring length of 3 meters. These draw-wire mechanisms may be combined with the proven Kübler Sendix encoders with incremental or absolute interface, as well as with analog sensors, which are also available in redundant version.

  • Flexible assembly

  • Integrated water drain holes

  • Encoder freely selectable

  • 360° encoder adjustment

  • Speed 0.8 m/s

  • max. linearity ±0.35 %

Draw-wire Encoders With Smart Interfaces

The below Kubler draw-wire encoders are also available in a range of interfaces. View our full range.

A41

Max length 2 m



  • Extremely compact

  • Flexible assembly

  • Wide temperature range

  • Encoder freely selectable

  • Speed 1 m/s

  • max. linearity ±0.35 %

A50

Max length 1.25 m



  • Encoder freely selectable

  • Precise measuring

  • High dynamics

  • Simple mounting

  • Encoder freely selectable

  • Speed 10 m/s

  • max. linearity ±0.02 %

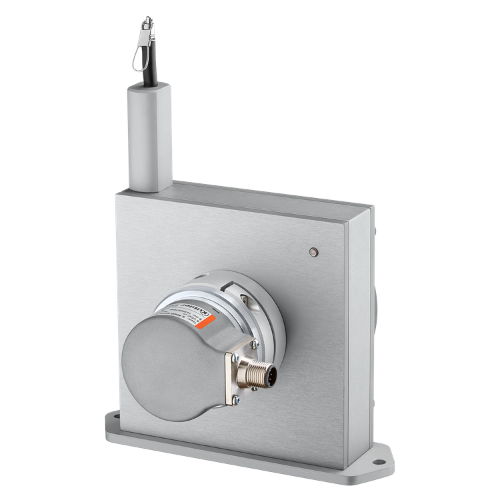

B80

Max length 3 m



  • Max. measuring length 3 m

  • Speed 10 m/s

  • max. linearity ±0.02 %

C105

Max length 6 m



  • Encoder freely selectable

  • Simple mounting

  • Interchangeable installation for encoders

  • Speed 3 m/s

  • max. linearity ±0.1 %

C120

Max length 6 m



  • High dynamics

  • Simple mounting

  • Precise measuring

  • Encoder freely selectable

  • Speed 10 m/s

  • max. linearity ±0.02 %

D120

Max length 10 m



  • Thick V4A measuring cable up to 1.5 mm

  • High protection up to IP69k

  • Different housing types

  • Speed 3 m/s

  • max. linearity ±0.1 %

C60

Max length 4 m



  • Thick V4A measuring cable up to 1.0 mm

  • High protection up to IP69k

  • Different housing types

  • Speed 3 m/s

  • max. linearity ±0.1 %

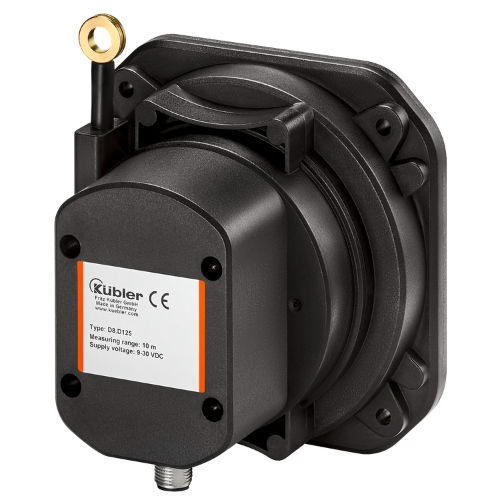

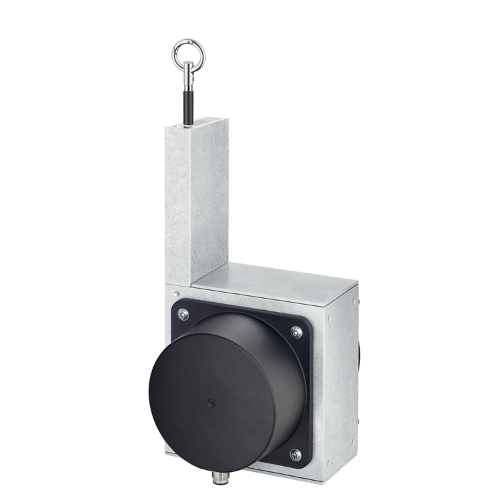

D125

Max length 10 m



  • Integrated inclinometer

  • Redundant sensors

  • High IP67 protection

  • Speed 1 m/s

  • max. linearity ±0.5 %

Chat To Us Today

Specific solutions for specific requirements.

Speak to our draw-wire encoder specialists today.

Get In Touch
Team member

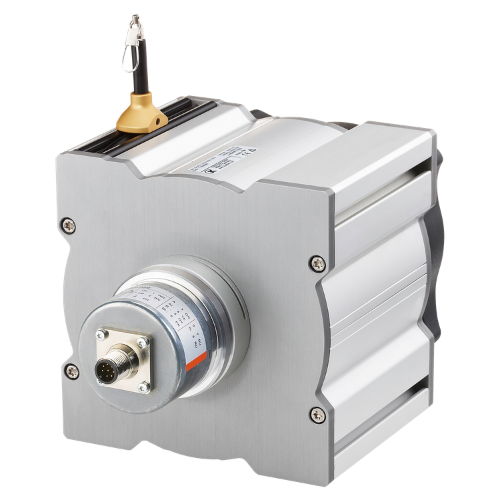

Heavy Duty Encoder

These draw-wire mechanics D135 can be used up to a measuring length of 42.5 meters. This draw-wire mechanics may be combined with the proven Kübler Sendix encoders with incremental or absolute interface, as well as with analog sensors.

With its compact construction, the D135 suits perfectly all measuring tasks from 8 up to 42.5 meters.



  • Encoder freely selectable

  • Movable cable pylon

  • High dynamics

  • Speed 10 m/s

  • max. linearity ±0.02 %

Linear Measuring Technology

Kubler also have a range of magnetic length measuring systems, measuring wheel systems and SIL3 certified shaft copying system. Download the relevant selection guides to learn more.



Magnetic length measuring systems

Protection class IP69k. Suitable for harsh environmental conditions. Compact design – perfect for tight spaces. Incremental or absolute.



Measuring wheel systems

Various measuring wheel systems. The right measuring wheel for any surface. Can be combined with various encoders.

Shaft copying systems

The contactless measuring system for shaft copying. The safe system therefore consists of a SIL3-certified sensor and a suitable evaluation unit.
