Weidmuller AKE 4 Protective Earth Terminal Block, 4mm², 500V, Screw Connection, Green/Yellow, DIN Rail TS 15
PART NO:
0380260000 /
SKU:
1011966
$11.81
inc. GST
$10.74
ex. GST
Product Specification
Brand:
Weidmuller
Type:
Earth Terminal
Width:
6.1 mm
Colour:
Green;Yellow
Function:
Single Level Feed Through
Material:
Wemid
Blade Size:
0.6 mm x 3.5 mm
Cable Size:
26 to 12 AWG
Model/Series:
SAK
Mounting Type:
TS15 Rail Mount
Rated Current:
480 A
Rated Voltage:
500 V
Certifications:
CCC;CE;CSA;cURus;Ex I;IECEx;KEMA;KEUR;ATEX;UKCA-EX;UKCA;UL;UR E60693;RoHs
Connection Type:
Screw
Number of Levels:
1
Stripping Length:
9 mm
Max Clamping Range:
4 mm²
Min Clamping Range:
0.13 mm²
Wire Cross Section:
4 mm²
Connection Direction:
On Side
Number of Connections:
2
Max Operating Temperature:
+130 °C
Min Operating Temperature:
-60 °C
Depth:
29 mm
Height:
27 mm
Weight:
5.38 g
Model Part Code:
AKE 4
Product Downloads
Related Products
In Stock
$11.50
inc. GST
$10.45
ex. GST
Special Order
$11.66
inc. GST
$10.60
ex. GST
1010100000

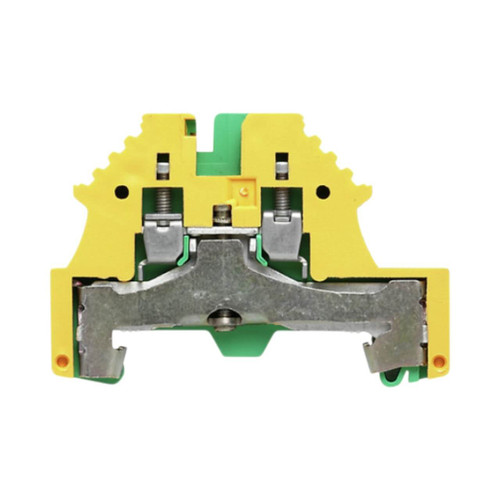

Weidmuller WPE Earth Terminal Block, 4mm², Screw Connection, Green/Yellow, DIN Rail Mount, TS 35
