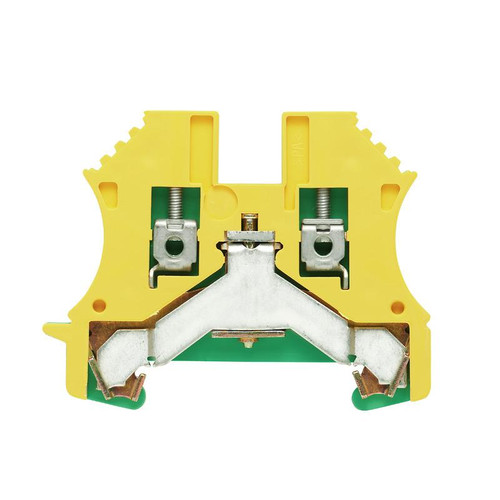

Weidmuller WPE 2.5N Earth Terminal Block, 2.5mm², 500V, Screw Connection, Green/Yellow, TS 35 DIN Mount
PART NO:
1016200000 /
SKU:
1029382
$12.52
inc. GST
$11.38
ex. GST
Product Specification
Brand:
Weidmuller
Type:
PE Terminal
Width:
5.1 mm
Colour:
Green;Yellow
Function:
Single Level Feed Through
Material:
Wemid
Blade Size:
0.6 x 3.5 mm
Cable Size:
26 to 12 AWG
Model/Series:
WPE
Mounting Type:
TS35 Rail Mount
Rated Current:
300 A
Rated Voltage:
500 V
Certifications:
CCCEX;CE;CSA;DEMKO ATEX;DNV;IEC ExULD;INMETRO;KOSHA Ex;Lloyds Register;UR;UKCA;RoHS
Connection Type:
Screw
Number of Levels:
1
Stripping Length:
10 mm
Max Clamping Range:
4 mm²
Min Clamping Range:
0.05 mm²
Wire Cross Section:
2.5 mm²
Connection Direction:
On Side
Number of Connections:
2
Max Operating Temperature:
+130 °C
Min Operating Temperature:
-60 °C
Depth:
37 mm
Height:
54 mm
Weight:
12.73 g
Model Part Code:
WPE 2.5N
