Weidmuller WPE 35 Earth Terminal Block, 35mm², 800V, Screw Connection, Green/Yellow, DIN Rail TS 35
PART NO:
1010500000 /
SKU:
1012077
$22.99
inc. GST
$20.90
ex. GST
Product Specification
Brand:
Weidmuller
Type:
Earth Terminal
Width:
16 mm
Colour:
Green;Yellow
Function:
Single Level Feed Through
Material:
Wemid
Blade Size:
6.50 x 1.20 mm
Cable Size:
12 to 2 AWG
Model/Series:
W
Mounting Type:
TS35 Rail Mount
Rated Voltage:
800 V DC
Certifications:
CCC;CE;CSA;CSAEX;cURusEX;DNV;IECEx;Ex I:KEMA;KEUR;ATEX;INMETRO;KC KOSHAEX;Lloyds Register;NEMKO;UKCA-EX;UL;UR E60693;RoHS
Connection Type:
Screw
Number of Levels:
1
Stripping Length:
18 mm
Max Clamping Range:
35 mm²
Min Clamping Range:
2.50 mm²
Wire Cross Section:
35 mm²
Connection Direction:
On Side
Number of Connections:
2
Max Operating Temperature:
+130 °C
Min Operating Temperature:
-60 °C
Depth:
62.50 mm
Height:
56 mm
Weight:
77.20 g
Model Part Code:
WPE 35
Product Downloads
Related Products
In Stock
$10.90
inc. GST
$9.91
ex. GST
1010300000

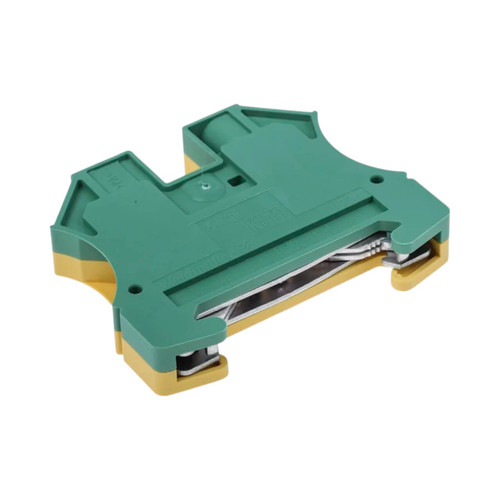

Weidmuller WPE 10 Earth Terminal Block, 10mm², 800V, Screw Connection, Green/Yellow, DIN Rail TS 35
