  • Smart Series BK500PS Pull and Slack Trip Pull Wire Switch, Glass Reinforced Nylon, SIL2, IP66/67, Black

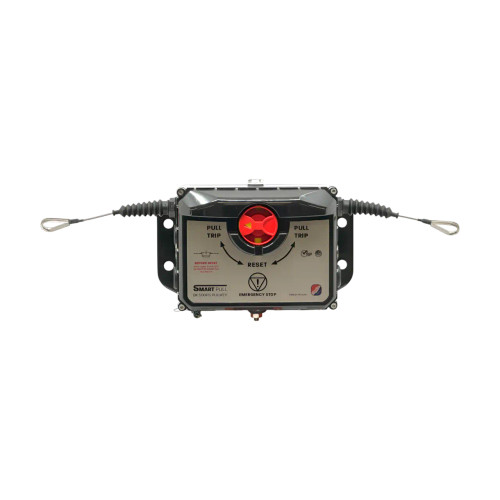

Smart Series BK500PS Pull and Slack Trip Pull Wire Switch, Glass Reinforced Nylon, SIL2, IP66/67, Black

PART NO: SSPK-BK500PS-STD / SKU: 1036546
Smart Series BK500PS Pull and Slack Trip Pull Wire Switch, Glass Reinforced Nylon, SIL2, IP66/67, Black
$1,004.30
inc. GST
$913.00
ex. GST
Free shipping on orders over $100
  • Reflective tape for improved visibility during both day and night.
  • Durable rubber boots ensure superior protection against water and dust.
  • Available with LED indication or pre-start siren options.
  • High-visibility reflective flag ensures long-distance night detection of pullkey trips.

Product Specification

Brand:
Smart Series
Type:
Pull Wire Switch
IP Rating:
IP66;IP67
Model/Series:
BK500PS
Rated Current:
16 A
Rated Voltage:
240 V
Certifications:
SIL2;IEC 61508;AS/NZS 4024.3610:2015;BS EN ISO 13850:2008
Enclosure Material:
Glass Reinforced Nylon
Contact Configuration:
2 NC 2 NO
Max Operating Temperature:
+50 °C
Min Operating Temperature:
-40 °C

Product Downloads

Datasheet
