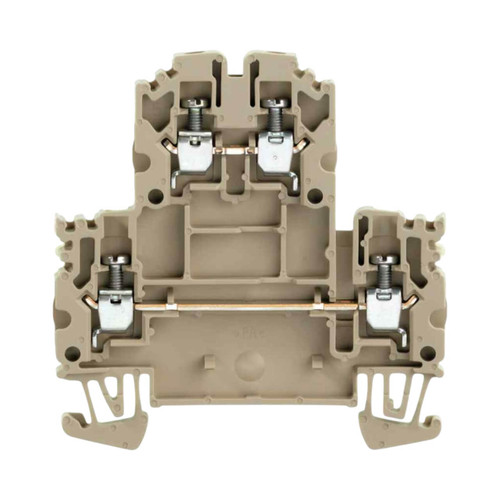

Weidmuller WDK 2.5N V Double-Level Terminal Block, 2.5mm², 24A, 800V, Beige, TS35 DIN Rail Mount
PART NO:
1041610000 /
SKU:
1033195
$16.74
inc. GST
$15.22
ex. GST
Product Specification
Brand:
Weidmuller
Type:
Feed Through Terminal
Width:
5.10 mm
Colour:
Beige
Function:
Double Level Feed Through
Material:
Wemid
Blade Size:
0.60 x 3.50 mm
Cable Size:
30 to 12 AWG
Model/Series:
W
Mounting Type:
TS35 Rail Mount
Rated Current:
24 A
Rated Voltage:
800 V AC/DC
Certifications:
CCC;CE;CSA;IECEx;ATEX;KEMA;KEUR;UKCA-EX;UR E60693;RoHS;UKCA;UL
Connection Type:
Screw
Number of Levels:
2
Stripping Length:
8 mm
Max Clamping Range:
4 mm²
Min Clamping Range:
0.05 mm²
Wire Cross Section:
2.50 mm²
Connection Direction:
Right
Number of Connections:
4
Max Operating Temperature:
+130 °C
Min Operating Temperature:
-60 °C
Depth:
62 mm
Height:
61 mm
Weight:
12.28 g
Model Part Code:
WDK 2.5N V
