Weidmuller SAK 35N Feed-Through Terminal Block, 35mm², 800V, 125A, Screw Connection, Beige, TS 32
PART NO:
0550660000 /
SKU:
1012050
$18.17
inc. GST
$16.52
ex. GST
Product Specification
Brand:
Weidmuller
Type:
Feed Through Terminal
Width:
16 mm
Colour:
Beige
Function:
Single Level Feed Through
Material:
Polyamide 66
Blade Size:
6.50 x 1.20 mm
Cable Size:
12 to 2 AWG
Model/Series:
SAK
Mounting Type:
TS32 Rail Mount
Rated Current:
125 A
Rated Voltage:
800 V AC/DC
Certifications:
CE;CSA;cURusEX;DNV;UR E60693;RoHS;UKCA;UL
Connection Type:
Screw
Number of Levels:
1
Stripping Length:
18 mm
Max Clamping Range:
50 mm²
Min Clamping Range:
2.50 mm²
Wire Cross Section:
35 mm²
Connection Direction:
Right
Number of Connections:
2
Max Operating Temperature:
+100 °C
Min Operating Temperature:
-50 °C
Depth:
67.50 mm
Height:
58 mm
Weight:
51.35 g
Model Part Code:
SAK 35N
Product Downloads
Related Products
In Stock
$18.17
inc. GST
$16.52
ex. GST
1040400000

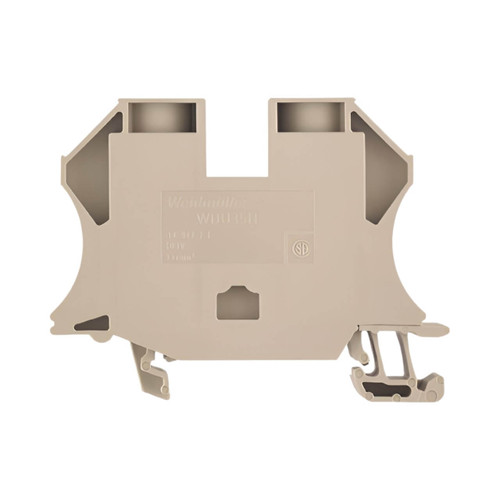

Weidmuller WDU 35N Feed-Through Terminal Block, 35mm², 125A, 500V, Screw Connection, Beige, TS 35
