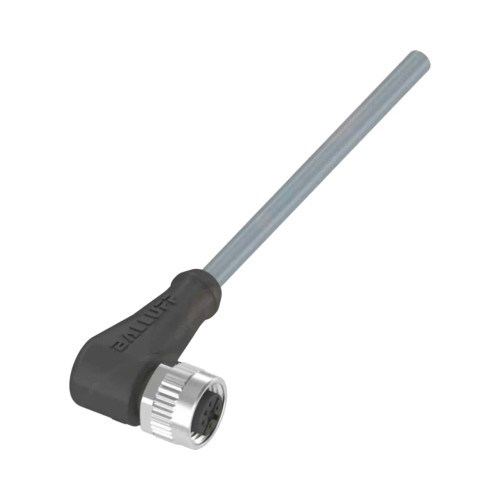

  • Balluff BCC Single-Ended Cable, M12 Female Angled, 5-Pin, A-Coded, 2m PVC Grey, Unshielded, IP67/IP69K

Balluff BCC Single-Ended Cable, M12 Female Angled, 5-Pin, A-Coded, 2m PVC Grey, Unshielded, IP67/IP69K

PART NO: BCC0367 / SKU: 1019734
Balluff BCC Single-Ended Cable, M12 Female Angled, 5-Pin, A-Coded, 2m PVC Grey, Unshielded, IP67/IP69K
$15.76
inc. GST
$14.33
ex. GST
Free shipping on orders over $100

Product Specification

Brand:
Balluff
Type:
Single Ended Cable
IP Rating:
IP67;IP68;IP69K
Entry Type:
Straight
Application:
Industrial
Coding Type:
A-Coded
Shield Type:
Unshielded
Cable Length:
2 m
Model/Series:
BCC
Jacket Colour:
Grey
Rated Current:
4 A
Rated Voltage:
250 V AC/DC
Cable Material:
PVC
Certifications:
CE;cULus;WEEE
Connector Type:
M12
Jacket Material:
PVC
Number of Cores:
4
Connector Gender:
Female
Wire Cross Section:
0.34 mm²
Max Operating Temperature:
+105 °C
Min Operating Temperature:
-40 °C
Model Part Code:
BCC M415-0000-1A-003-VX8434-020

Product Downloads

Datasheet
