Balluff BCC M12 Double-Ended Cable, Male to Male Straight, 4-Pin, Shielded, CAT 5E
PART NO:
BCC0KPA /
SKU:
1033259
$268.29
inc. GST
$243.90
ex. GST
Product Specification
Brand:
Balluff
Type:
Double-Ended Cordset
IP Rating:
IP67;IP67
Entry Type:
Straight
Coding Type:
D-Coded
Shield Type:
Shielded
Cable Length:
25 m
Model/Series:
BCC
Jacket Colour:
Green
Rated Current:
1.5 A
Rated Voltage:
60 V DC
Cable Material:
PUR
Certifications:
CE;cULus;UKCA;WEEE
Jacket Material:
PUR
Model Part Code:
BCC M414-M414-6D-331-PS54N2-250
Number of Cores:
4
Connector Type 1:
4-Pin M12 x 1 Male Straight
Connector Type 2:
4-Pin M12 x 1 Male Straight
Outside Diameter:
15.5 mm
Resistance Rating:
55 Ω/km
Connector Gender 1:
Male
Connector Gender 2:
Male
Number of Contacts:
4
Max Operating Temperature:
+80 °C
Min Operating Temperature:
-40 °C
Product Downloads
Related Products
In Stock
$30.16
inc. GST
$27.42
ex. GST
In Stock
$33.54
inc. GST
$30.49
ex. GST
Special Order
$39.66
inc. GST
$36.05
ex. GST
BCC0JU7

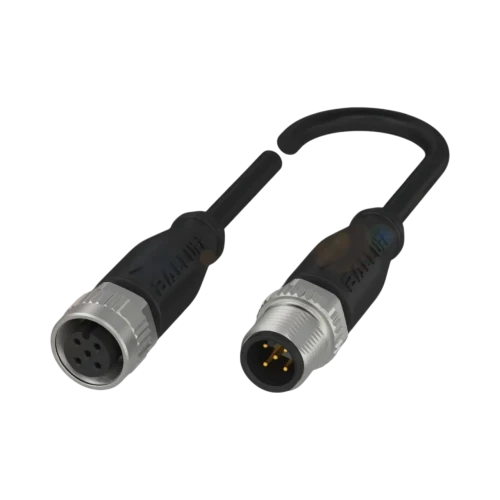

Balluff BCC Double-Ended Cable, M12 Female to M12 Male, 5-Pin, A-Coded, 1m PUR Black, Shielded, IP67
