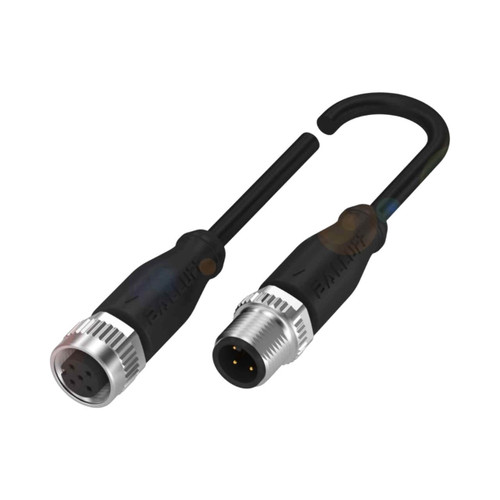

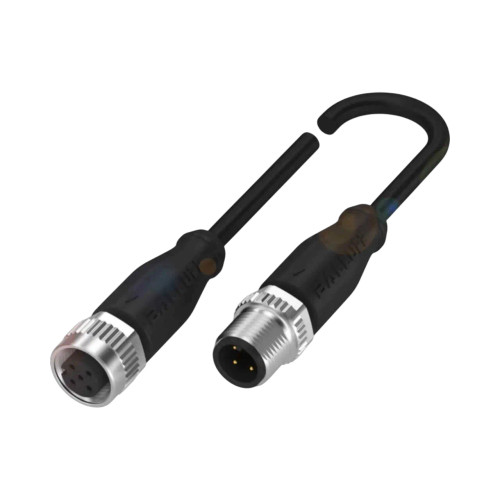

Balluff BCC Double-Ended Cable, M12 Female to M12 Male, 5-Pin, A-Coded, 10m, PUR Black, Straight, IP67

PART NO: BCC0AJC / SKU: 1033266
Balluff BCC Double-Ended Cable, M12 Female to M12 Male, 5-Pin, A-Coded, 10m, PUR Black, Straight, IP67
$56.72
inc. GST
$51.56
ex. GST
Free shipping on orders over $100

Product Specification

Brand:
Balluff
Type:
Double Ended Cable
IP Rating:
IP67;IP68;IP69K;IP67;IP68;IP69K
Entry Type:
Straight
Application:
Industrial
Coding Type:
A-Coded
Shield Type:
Unshielded
Cable Length:
10 m
Model/Series:
BCC
Jacket Colour:
Black
Rated Current:
4 A
Rated Voltage:
60 V AC/DC
Cable Material:
PUR
Certifications:
CE;cULus;UKCA;WEEE
Jacket Material:
PUR
Connector Type 1:
M12
Connector Type 2:
M12
Connector Gender 1:
Female
Connector Gender 2:
Male
Wire Cross Section:
0.34 mm²
Insulation Material:
PUR
Max Operating Temperature:
+90 °C
Min Operating Temperature:
-50 °C
Model Part Code:
BCC M415-M415-3A-313-PX0534-100

Product Downloads

Datasheet
