High-performance motor control for demanding applications, IIoT-ready, modular, built to scale
The Danfoss iC7-Automation is a next-generation variable speed drive for conveyors, hoists, compressors and multi-drive systems, supplied and supported by Pacific Automation across Australia.
What the iC7 Delivers
Precise Motor Control
Superior shaft performance in open or closed loop, including sensorless operation at low speed. Compatible with induction, permanent magnet and synchronous reluctance motors.
Integrated Functional Safety
Safe Torque Off (STO) and Safe Stop 1 (SS1-t) to SIL3 / Performance Level e are standard, no external safety contactors required. PROFIsafe functional safety via fieldbus is also available.
Flexible IIoT Connectivity
Dual Ethernet port with multiple fieldbus protocols selectable by licence key: PROFINET RT, EtherNet/IP, EtherCAT, Modbus TCP and OPC UA. Switch fieldbus in the field without changing hardware.
Modular, Scalable Architecture
Frequency converters from 0.37 kW to 710 kW. Scale further with air-cooled system modules to 2,700 kW. Parallel power units, no balancing filters required.
iC7 Specificaitons at a Glance
- Supply voltage — frequency converters: 3 × 380–500 V AC (–15%/+10%)
- Power range — frequency converters: 0.37–710 kW
- Power range — air-cooled system modules: 200–2,700 kW
- Power range — enclosed drives: 200–900 kW
- Enclosure rating — frequency converters: IP20 standard; IP21 and IP54 available
- Operating temperature: –30°C to +50°C rated; up to +60°C with derating
- Altitude: Up to 4,400 m with derating
- EMC: C1/C2 filter (smaller frames); C3 filter available
- Fieldbus: PROFINET RT, EtherNet/IP, EtherCAT, Modbus TCP, OPC UA (licence key activation)
- Functional safety: STO + SS1-t SIL3 / PLe as standard
- Motor compatibility: IM, PM, SynRM
- Commissioning: MyDrive® Insight
| Application | iC7 suitable? | Notes |
| Heavy conveyors and hoists | ✓ Yes | High-torque flux vector control, multi-drive load sharing |
| Compressors | ✓ Yes | Constant torque control, advanced PID auto-tuning |
| Pumps and fans — advanced control | ✓ Yes | Parallel power units, no balancing filters required |
| Multi-drive systems | ✓ Yes | Parallel power units, no balancing filters required |
| Food and beverage — high-speed and washdown | ✓ Yes | Bottle sorters, centrifuges, dosing pumps, palletisers |
| Panel build / OEM — high spec | ✓ Yes | Compact footprint, EPLAN integration, modular platform |
| Marine applications | ✓ Yes (iC7 Marine Variant) | Liquid-cooled, DNV and Class NK approved — talk to our team |
| Positioning and synchronisation | ✓ Yes (Motion Application) | Single-axis linear/rotary positioning via licence key activation |
| Hazardous area | Consult us | Confirm variant and certification requirements with our team |
| Basic/OEM pumps, fans, light conveyors | Consider iC2 | Consider the iC2 for basic/OEM variable-torque loads — simpler, lower cost |
For the most suitable solution for your requirements please reach out to our technical team for the best advice via the form on this page or similar.
Chat To Us Today
Get Advice Before You Order
Our team can confirm the iC2 is the right fit for your application before you purchase.
Get In TouchDownload the iC7-Automation Selection Guide
The iC7-Automation is a configurable platform, power range, fieldbus protocol, safety level and motor type all need to be confirmed for your application.
Download the selection guide to review the full specification, or talk to our team for a recommendation.
iC7 Micro Drive Variations

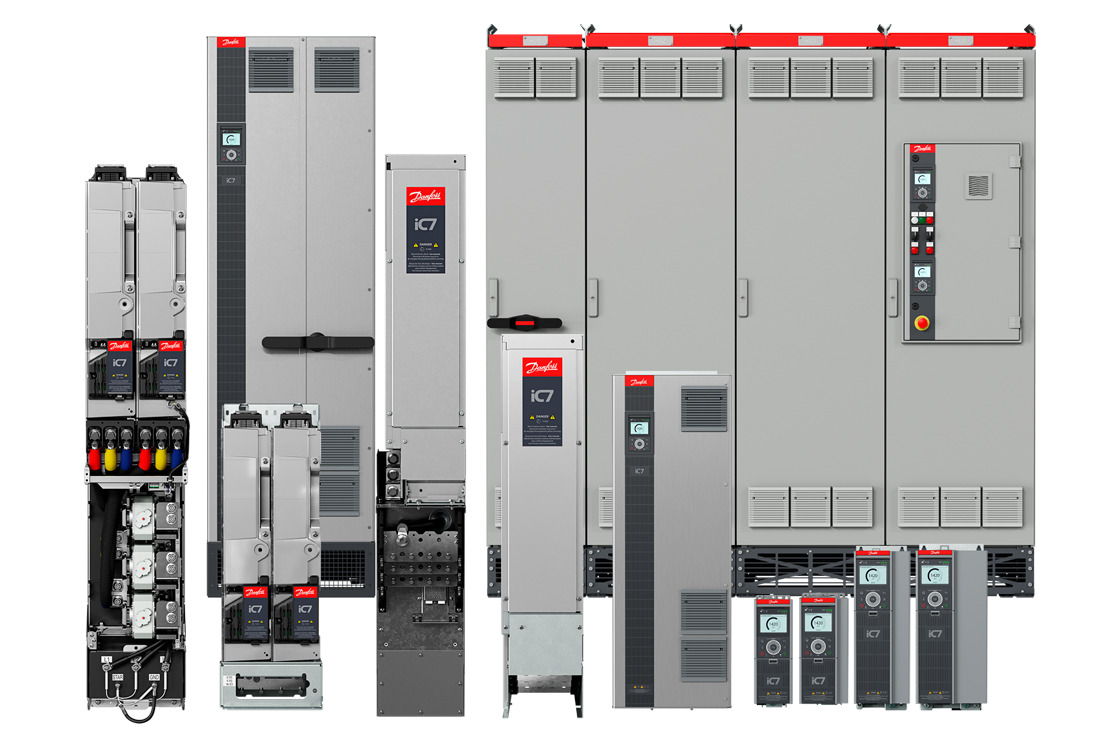

The iC7-Automation frequency converter covers 0.37 kW to 710 kW at 380–500 V AC. For higher power applications, air-cooled system modules extend the range to 2,700 kW. Available in IP20 standard with IP21/IP54 options.
Contact our team to confirm the right model for your motor, application and installation requirements.
New Installation or Replacing an Existing Drive?
New installation (greenfield): Specifying iC7 into a new panel, system or machine? Our team can confirm the correct variant and power rating for your application, advise on fieldbus and safety configuration, and flag any integration considerations before you order.
Upgrading an existing system (brownfield): Moving from an FC-302 or another high-performance drive? The iC7-Automation is Danfoss's next-generation platform for demanding industrial applications. Our team can assess compatibility and help plan the migration.
Need a simpler solution? — Danfoss iC2 Micro Drive
The iC2 is Danfoss's compact, easy-to-specify drive for standard variable-torque applications — pumps, fans, light conveyors and general purpose loads. If your application doesn't need the advanced control and connectivity of the iC7, the iC2 is the more cost-effective choice.
Get Advice Before You Order
Our team can confirm the iC7 is the right fit for your application before you purchase, and will tell you if a different product would serve you better.
