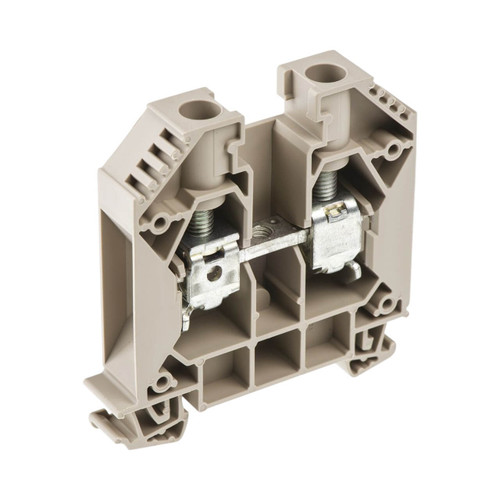

Product Specification
Brand:
Weidmuller
Type:
Feed Through Terminal
Width:
11.90 mm
Colour:
Dark Beige
Function:
Single Level Feed Through
Material:
Wemid
Blade Size:
1.00 x 5.50 mm
Cable Size:
18 to 4 AWG
Model/Series:
W
Mounting Type:
TS35 Rail Mount
Rated Current:
76 A
Rated Voltage:
1000 V AC/DC
Certifications:
CCC;CE;CSA;CSAEX;cURusEX;DNV;IECEx;KEMA;KEUR;Lloyds Register;ATEX;UKCA-EX;UR E60693;RoHS;UL;INMETRO;KC KOSHAEX;NEMKO
Connection Type:
Screw
Number of Levels:
1
Stripping Length:
16 mm
Max Clamping Range:
25 mm²
Min Clamping Range:
0.82 mm²
Wire Cross Section:
16 mm²
Connection Direction:
Right
Number of Connections:
2
Max Operating Temperature:
+130 °C
Min Operating Temperature:
-60 °C
Depth:
62.50 mm
Height:
60 mm
Weight:
29.46 g
Model Part Code:
WDU 16
