Before understanding what makes the Smart Series different, it helps to understand the problem it was engineered to fix.

Pacific Automation spent years consulting with maintenance teams across the country, and the feedback pointed to the same pain points every time. Nuisance trips, unplanned shutdowns caused not by actual hazards, but by equipment failures, were costing the sector enormous amounts of time and money.

Three root causes kept surfacing:

Loose wire connections caused false trips that were difficult to trace and time-consuming to resolve. Corroded switch contacts, particularly in high-moisture and dusty environments, introduced electrical faults that triggered shutdowns with no real safety event. And thermal expansion of the lanyard wire, a particular problem in places like the Pilbara, where temperatures can swing dramatically between day and night and across seasons, caused slack wire trips that had nothing to do with belt behaviour.

Each of these failures meant a callout, a belt stoppage, and lost production. On longer belts in remote areas, even a single hour of downtime could represent unrecoverable losses running into the millions.

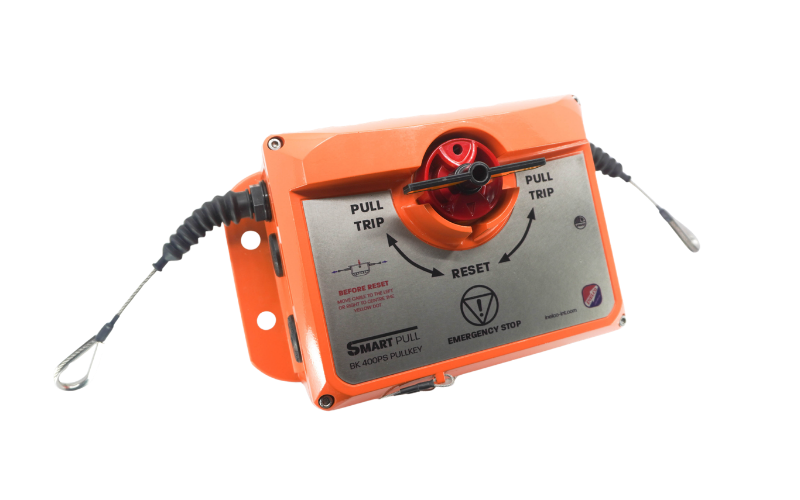

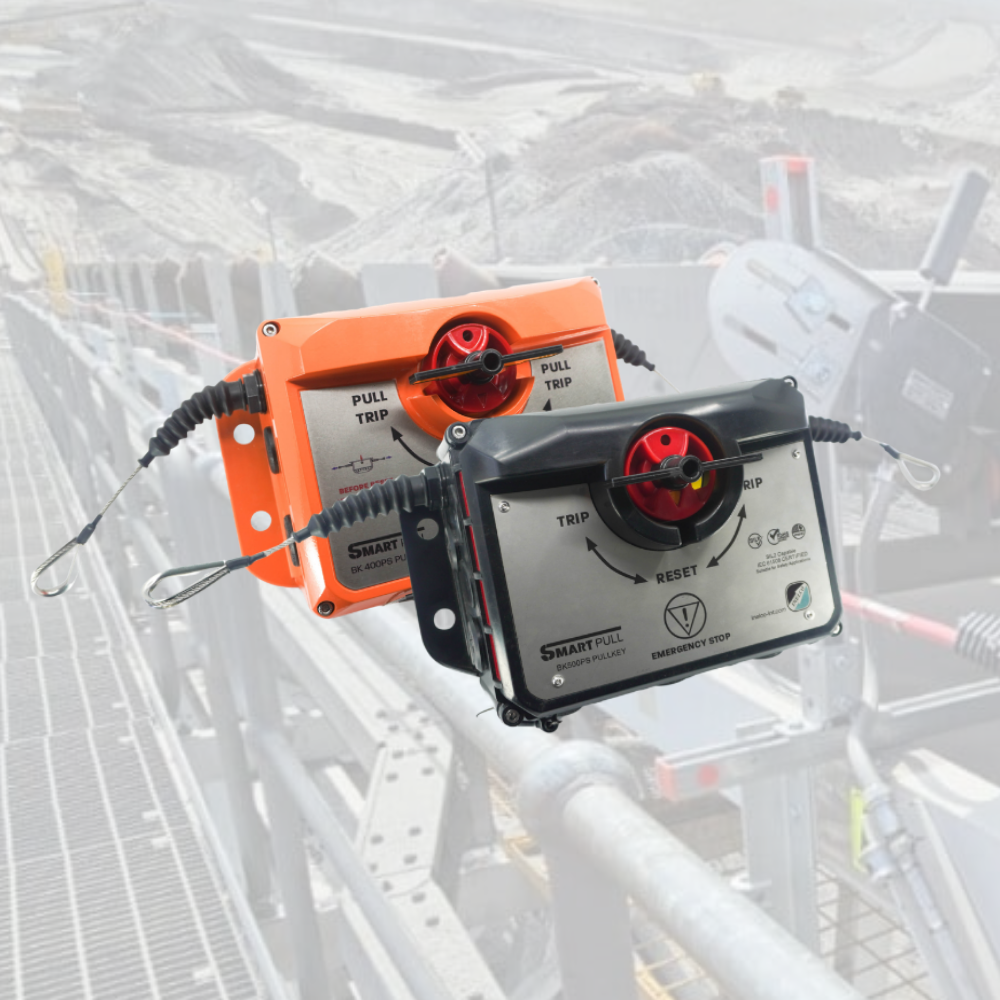

The Smart Pull Wire Switch is the foundation of the Smart Series ecosystem, and it was designed from the ground up to eliminate the failure modes described above.

Spring-Tension Terminals That Grip Under Stress

At the heart of the switch's electrical reliability are Weidmüller A-Series push-in spring terminals. These spring terminals are designed to grip tighter as the cable moves, the harder the pull, the harder the grip. The result is a connection that becomes more secure under the exact conditions, vibration and temperature change, that cause traditional systems to fail. Loose wire connections, one of the most common causes of nuisance trips, are effectively eliminated.

IP67-Rated, Fully Epoxied Contacts

The switch's internal contacts are IP67-rated and fully encapsulated in epoxy, preventing corrosion even in extreme moisture or dust. Rather than routing connections directly through the switch body, each contact connects to a fly lead, which is then fed into the spring terminals, adding a second layer of protection against corrosion and fault conditions.

Thermal Expansion Without False Trips

One of the most innovative aspects of the Smart Pull design is how it handles wire expansion. In conventional pull wire systems, the lanyard wire expands and contracts with temperature changes, causing tension to fluctuate and sometimes triggering a trip. The Smart Series solves this by tensioning the lanyard only at the anchor points, ensuring the left and right sides always maintain equal tension regardless of ambient temperature. That means a wire expanding in 50-degree Celsius heat will not send maintenance crews on a fruitless callout.

Internal springs inside the switch body, another traditional source of slack wire trips, have also been eliminated entirely.

The efficiency gains with the Smart Series extend well beyond eliminating nuisance trips. Once commissioned, the system requires no ongoing re-tensioning or periodic termination checks, the two most labour-intensive aspects of traditional pull wire switch maintenance. Overall maintenance requirements are reduced by more than 80 per cent compared to conventional systems.

Pacific Automation also redesigned the tensioning process itself. A new ratchet tensioning system, combined with clip-on carabiner hooks at both the switch body and the anchor point, makes removing the switch for maintenance tasks, such as replacing idlers, fast and straightforward. A built-in tension indicator provides visual confirmation that the system is within the range required by AS/NZS 4024.3610:2015, meaning compliance checks during statutory shutdowns can be completed quickly with a simple visual inspection rather than manual measurement and adjustment.

One of the practical challenges with many legacy pull wire switches is the lack of space for monitoring hardware, which often requires additional external junction boxes, more cost, more wiring, more potential fault points.

The Smart Pull enclosure was designed with integration in mind. Its spacious compartment can accommodate most third-party monitoring modules, including IMAC and Ringway systems, and Pacific Automation can pre-wire and test these modules before delivery. That removes a significant amount of complexity from the installation process and reduces the number of connection points in the system, which directly reduces the risk of future faults.

Cable-in, cable-out connectivity further simplifies wiring and eliminates the need for external modules in the field.

The Smart Series has been engineered to work across both new installations and retrofit upgrades to existing conveyor systems.

For greenfield projects, the modular, scalable design means the system can be configured precisely to the requirements of the conveyor, covering runs of up to 200 metres per switch and expanding as needed for longer systems.

For brownfield upgrades, the Smart Series addresses the challenge of retrofitting into existing infrastructure with minimal operational disruption. The integration of monitoring modules directly into the switch enclosure removes the need for additional external enclosures and cabling, significantly reducing wiring complexity and commissioning time.

The system also operates without an external power supply and carries IP66/67-rated ingress protection, making it suitable for the full range of environments encountered across Australian mining, mineral processing, coal operations, and quarry sites.

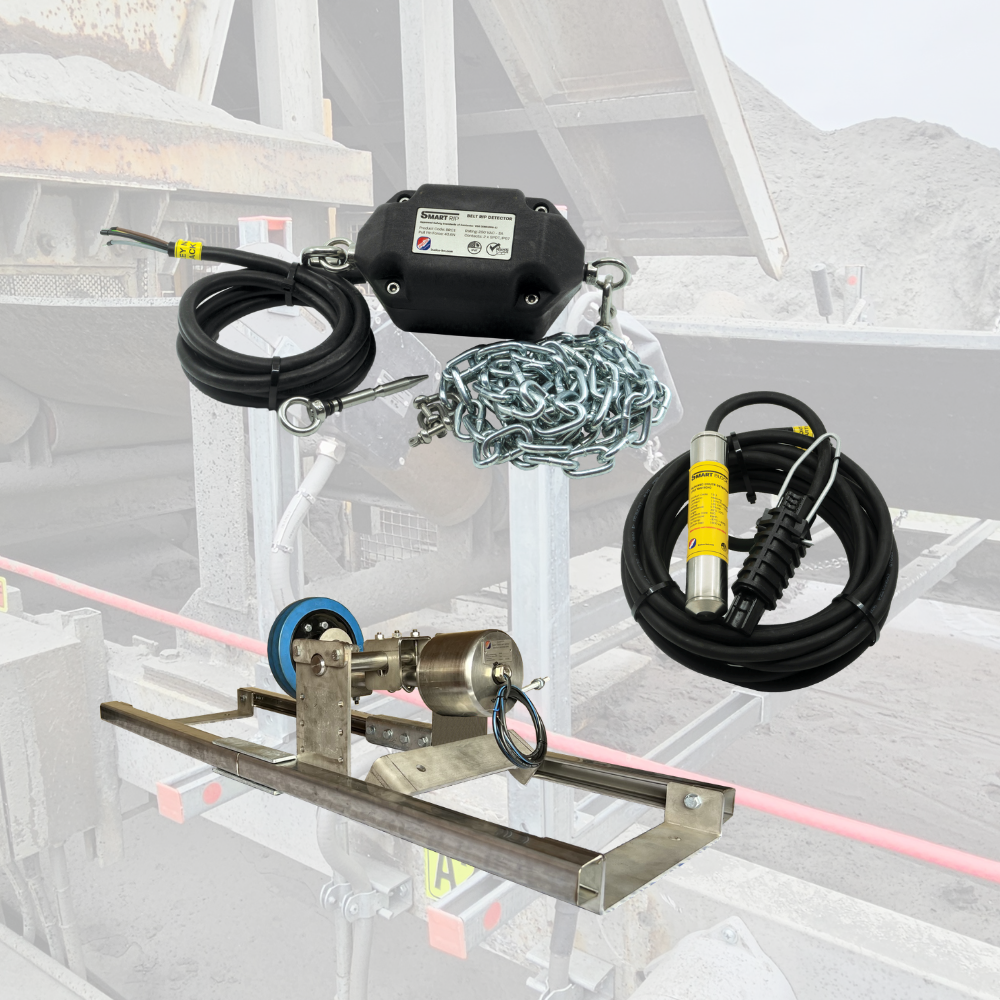

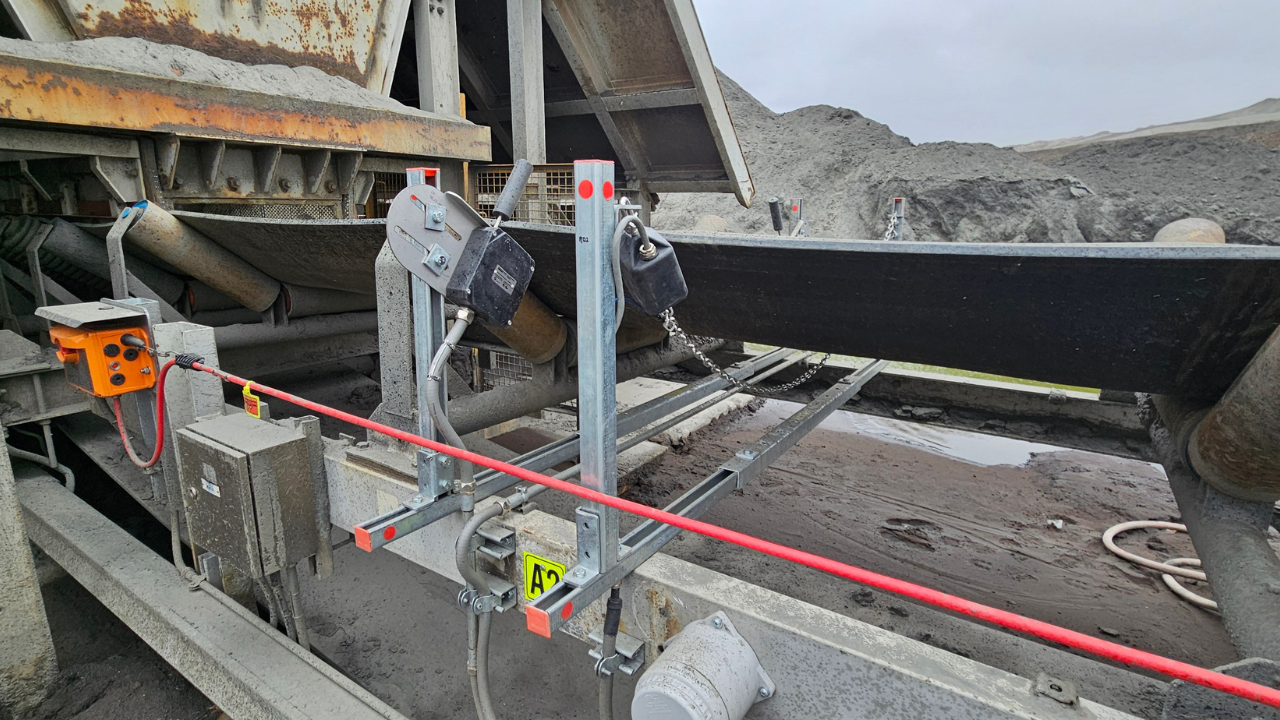

The system's real-world performance backs up its engineering credentials. A major Western Australian mine recently completed a full Smart Series installation across their conveyor infrastructure, incorporating Smart Pull Wire Switches, rip and spillage detectors, and belt drift sensors.

Prior to the upgrade, the site experienced chronic issues with nuisance trips under the old system. Since commissioning the Smart Series, they have recorded zero nuisance trips, and any trips that have occurred have been genuine events, the kind of safety-critical detections the system is designed to catch. The result has been significant reductions in maintenance callouts and unplanned downtime, and the site has since committed to standardising all future projects and upgrades on the Pacific Automation platform.
