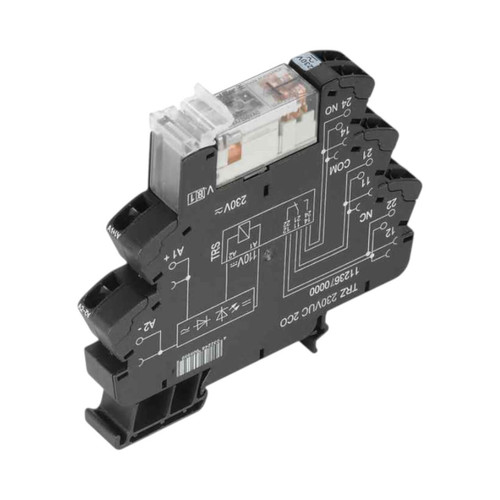

Weidmuller TRZ Interface Relay, DPDT, 8A, 24-230V AC/DC Coil, 250V AC Switching, Tension-clamp, TS 35 Mount

PART NO: 1123700000 / SKU: 1036122
Weidmuller TRZ Interface Relay, DPDT, 8A, 24-230V AC/DC Coil, 250V AC Switching, Tension-clamp, TS 35 Mount
$61.29
inc. GST
$55.72
ex. GST
Free shipping on orders over $100

Discover the Weidmuller TRZ Interface Relay (1123700000), a versatile and reliable solution for your control applications.

  • Features DPDT contacts for efficient switching.
  • Rated at 8A for robust performance.
  • Equipped with a 24-230V AC/DC coil for flexible power options and a tension-clamp for easy TS 35 mount installation.

Ensure reliable and safe operation with this advanced Weidmuller interface relay.

Product Specification

Brand:
Weidmuller
Type:
Relay Module
Width:
12.8 mm
Colour:
Black
Length:
87.8 mm
Wattage:
1.1 W @ 24 V DC;7;50 mVA @ 24 V AC;805 mW @ 230 V DC;1.68 VA @ 230 V AC
IP Rating:
IP20
Test Button:
No
Coil Voltage:
24 to 230 V AC/DC
Model/Series:
TRZ
Release Time:
Mounting Type:
DIN Rail Mount
Rated Current:
8 A
Rated Voltage:
250 V AC
Terminal Type:
Tension Clamp
Certifications:
CE;cULus;DNV;UKCA;RoHS;UL
Conductor Type:
Rigid Copper Conductor;Flexible Copper Conductor
Operating Time:
Connection Type:
Tension Clamp
Control Voltage:
24 to 230 V AC/DC
Mechanical Life:
30 x 10^6 cycles
Contact Material:
AgNi
Status Indicator:
Yes
Number of Contacts:
2
Contact Configuration:
2CO
Protective Circuit Type:
Rectifier
Rated Switching Current:
8 A
Rated Switching Voltage:
250 V AC
Max Operating Temperature:
+40 °C
Min Operating Temperature:
-40 °C
Height:
90.5 mm
Weight:
52.976 g
Model Part Code:
TRZ 24-230VUC 2CO
