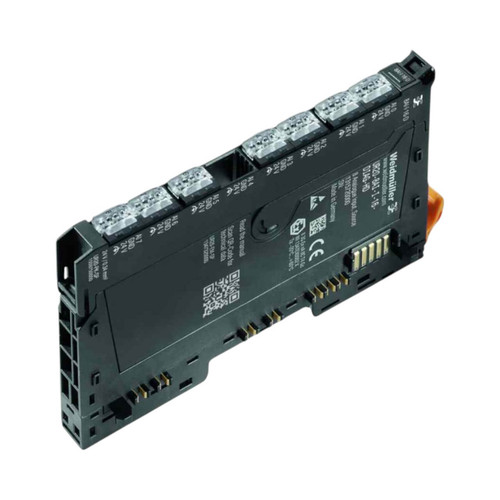

Product Specification
Brand:
Weidmuller
Type:
Analogue Input Module
Width:
11.5 mm
Accuracy:
0.1 %
Humidity:
10 to 95 %
Rated Current:
8 mA
Rated Voltage:
24 V DC
Certifications:
RoHS;cULus;CE;ABS;UKCA;DNV;ATEX;UKCA-Ex;LR;CCC;BV;KR;CCS;KC
Input Signal Type:
mA;V DC
Number of Channels:
8
Max Operating Temperature:
+60 °C
Min Operating Temperature:
-20 °C
Depth:
76 mm
Height:
120 mm
Weight:
74 g
Model Part Code:
UR20-8AI-I-16-DIAG-HD
