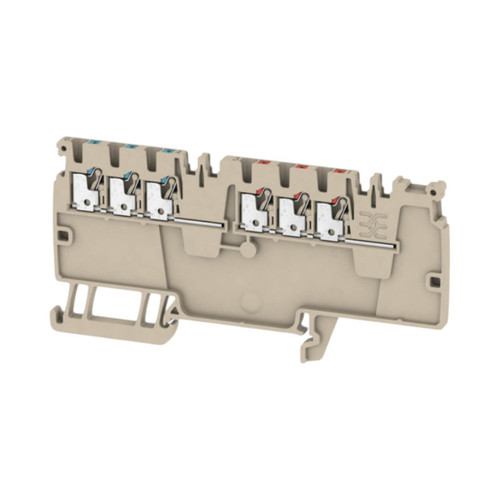

Product Specification
Brand:
Weidmuller
Type:
Distribution Terminal
Width:
3.5 mm
Colour:
Dark Beige
Function:
Single Level Feed Through
Material:
Wemid
Model/Series:
AAP11
Mounting Type:
TS35 Rail Mount
Rated Current:
17.5 A
Rated Voltage:
500 V AC/DC
Certifications:
CCC;CE;CSA;cURus;DNV;IECEx;KEMA;KEUR;ATEX;UKCA;UR E60693;RoHs;UL;KC KOSHAEX
Connection Type:
Push In
Number of Levels:
1
Wire Cross Section:
1.5 mm²
Connection Direction:
Top
Number of Potentials:
1
Number of Connections:
6
Max Operating Temperature:
+130 °C
Min Operating Temperature:
-60 °C
Depth:
47 mm
Height:
85.5 mm
Weight:
8168 mg
Model Part Code:
AAP11 1.5 LI BL
