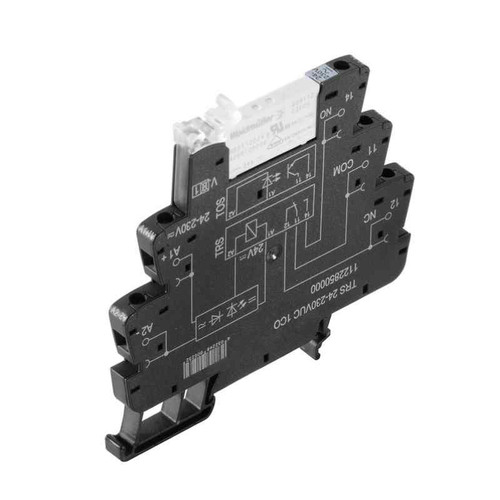

Weidmuller TRS DIN Rail Relay Module, 24-230V AC/DC Input, 250V AC/6A Output, 1 Changeover Contact, with LED

PART NO: 1122750000 / SKU: 1018740
Weidmuller TRS DIN Rail Relay Module, 24-230V AC/DC Input, 250V AC/6A Output, 1 Changeover Contact, with LED
$14.30
inc. GST
$13.00
ex. GST
Free shipping on orders over $100

Explore the versatile Weidmuller TRS DIN Rail Relay Module (1122750000), engineered for reliable performance in various applications.

  • Accepts a wide input voltage range of 24-230V AC/DC for flexible power integration.
  • Features a robust 250V AC/6A output with 1 changeover contact for effective switching.
  • Includes an integrated LED indicator for easy status monitoring.

Enhance your system's efficiency and control with this high-quality Weidmuller relay module.

Product Specification

Brand:
Weidmuller
Type:
Relay Module
Width:
6.4 mm
Colour:
Black
Length:
87.8 mm
IP Rating:
IP20
Test Button:
No
Coil Voltage:
12 V DC
Model/Series:
TRS
Release Time:
8 ms
Mounting Type:
TS35 Rail Mount
Rated Current:
6 A
Rated Voltage:
300 V
Terminal Type:
Screw
Certifications:
DNV;cULus;UKCA;RoHs:CE
Conductor Type:
Rigid Copper Conductor;Flexible Copper Conductor
Operating Time:
6 ms
Connection Type:
Screw
Control Voltage:
12 V DC
Mechanical Life:
5 x 10^6 Cycles
Contact Material:
AgNi
Status Indicator:
Yes
Number of Contacts:
1
Contact Configuration:
1CO
Protective Circuit Type:
Diode
Rated Switching Current:
6 A
Rated Switching Voltage:
250 V AC
Max Operating Temperature:
+60 °C
Min Operating Temperature:
-40 °C
Height:
89.6 mm
Weight:
33 g
Model Part Code:
TRS 12VDC 1CO
