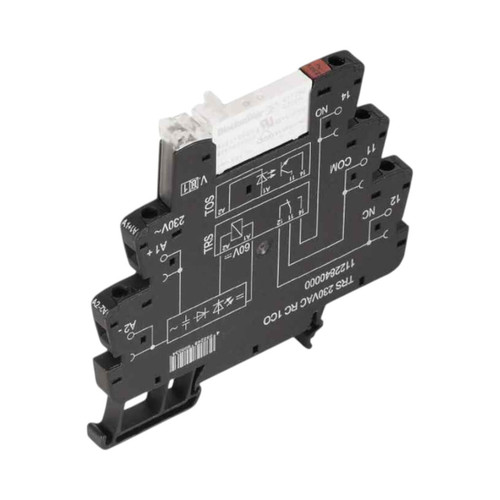

Weidmuller TRS Compact Relay, 1 NO Contact, 230V AC Control with RC Filter, 250VAC Switching, Status LED, TS35

PART NO: 1122840000 / SKU: 1017095
Weidmuller TRS Compact Relay, 1 NO Contact, 230V AC Control with RC Filter, 250VAC Switching, Status LED, TS35
$46.01
inc. GST
$41.83
ex. GST
Free shipping on orders over $100

Explore the Weidmuller TRS Compact Relay (1122840000), a reliable solution for your control needs.

  • Features a 1 NO Contact for efficient operation.
  • Equipped with 230V AC Control with an RC Filter for enhanced performance.
  • Includes a Status LED and supports TS35 mounting for easy integration.

Ensure dependable control and switching with this versatile Weidmuller relay.

Product Specification

Brand:
Weidmuller
Type:
Relay Module
Width:
6.4 mm
Colour:
Black
Length:
87.8 mm
Wattage:
2 VA
IP Rating:
IP20
Test Button:
No
Coil Voltage:
230 V AC
Model/Series:
TRS
Release Time:
≤12 ms
Mounting Type:
DIN Rail Mount
Rated Current:
6 A
Rated Voltage:
250 V AC
Terminal Type:
Screw
Certifications:
CE;cULus;DNV;UKCA;RoHS;UL
Conductor Type:
Rigid Copper Conductor;Flexible Copper Conductor
Operating Time:
≤10 ms
Connection Type:
Screw
Control Voltage:
230 V AC
Mechanical Life:
5 x 10^6 cycles
Contact Material:
AgNi
Status Indicator:
Yes
Number of Contacts:
1
Contact Configuration:
1CO
Protective Circuit Type:
Rectifier
Rated Switching Current:
6 A
Rated Switching Voltage:
250 V AC
Max Operating Temperature:
+60 °C
Min Operating Temperature:
-40 °C
Height:
89.6 mm
Weight:
34 g
Model Part Code:
TRS 230VAC RC 1CO
