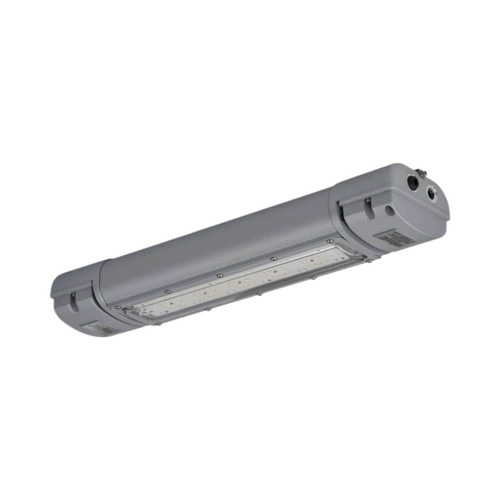

Raytec SPZ Hazardous Area LED Batten Light, 110 to 254V AC, 49W, 6500K, Zone 2/21

PART NO: SPZ-WL168-Z21 / SKU: 1031118
Raytec SPZ Hazardous Area LED Batten Light, 110 to 254V AC, 49W, 6500K, Zone 2/21

Contact Us For Pricing

Pricing for this product is not available online. Please contact us for more details and purchasing options.

Contact Us
Free shipping on orders over $100
$1,551.00
inc. GST
$1,410.00
ex. GST
Free shipping on orders over $100

Discover the Raytec SPZ-WL168-Z21 Hazardous Area LED Batten Light, designed for robust and reliable illumination in challenging environments.

  • Engineered for hazardous locations classified as Zone 2/21, ensuring safety and compliance.
  • Operates efficiently with a wide voltage range of 110 to 254V AC, providing versatile power compatibility.
  • Delivers bright, clear lighting with 49W power consumption and a 6500K color temperature.

Experience superior performance and safety with the Raytec SPZ-WL168-Z21 LED Batten Light.

Product Specification

Brand:
Raytec
Type:
Batten Light
Width:
174 mm
Length:
1251 mm
Wattage:
49 W
IK Rating:
IK10
IP Rating:
IP66;IP67
Beam Angle:
120 ° x 120 °
Lumen Output:
7048 lm
Model/Series:
SPZ
Power Supply:
Modular Driver
Lens Material:
Polycarbonate
Mounting Type:
Wall Mount;Ceiling Mount
Rated Voltage:
110 to 254 V AC
Certifications:
CML15ATEX4138;IEC Ex CML15.0068;CML21UKEX4104;CML16ATEX1130;IEC Ex CML16.0052;CML21UKEX1100
IECEx Gas Zone:
Zone 2
Connection Type:
M20
Ecom Hide Price:
No
IECEx Dust Zone:
Zone 21
Emergency Backup:
No
Housing Material:
Aluminium
Country of Origin:
United Kingdom
Colour Temperature:
6500 K
Max Operating Temperature:
+60 °C
Min Operating Temperature:
-40 °C
Height:
118 mm
Weight:
9 kg

Warranty Information

5 Years
