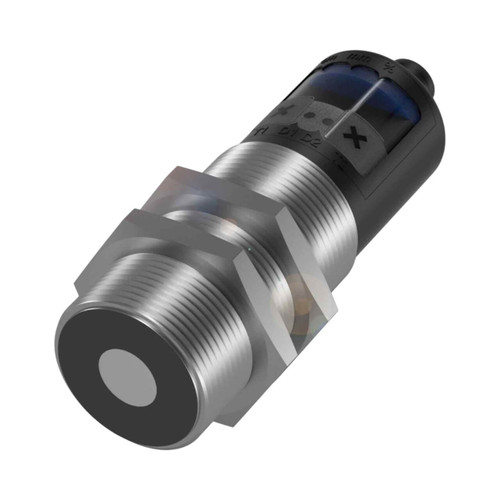

Microsonic mic+35 Stainless Steel Ultrasonic Sensor, M30, 65-600mm Range, 1 Analog Output 4-20mA/0-10V

PART NO: mic+35/IU/TC/E / SKU: 1006445

$804.10
inc. GST
$731.00
ex. GST
Free shipping on orders over $100

Discover the Microsonic mic+35 Stainless Steel Ultrasonic Sensor, mic+35/IU/TC/E, a versatile solution for precise distance measurement.

  • Constructed from durable stainless steel for robust performance in challenging environments.
  • Offers a wide measuring range of 65-600mm for flexible application use.
  • Equipped with an analog output (4-20mA/0-10V) for seamless integration into existing systems.

Ensure reliable and accurate distance sensing with this advanced Microsonic ultrasonic sensor.

Product Specification

Brand:
Microsonic
Type:
Ultrasonic Sensor
Style:
Cylindrical
Accuracy:
1 %
IP Rating:
IP67
Resolution:
0.03 to 0.10 mm
Output Type:
Analogue
Model/Series:
Mic+
Rated Current:
4 to 20 mA
Sensing Range:
600 mm
Certifications:
UL
Connection Type:
5-Pin M12 Initiator Plug
Housing Material:
Stainless Steel
Operating Voltage:
9 to 30 V DC
Display Technology:
LED
Switching Frequency:
400 kHz
Max Operating Temperature:
+70 °C
Min Operating Temperature:
-25 °C
Weight:
150 g

Product Downloads
