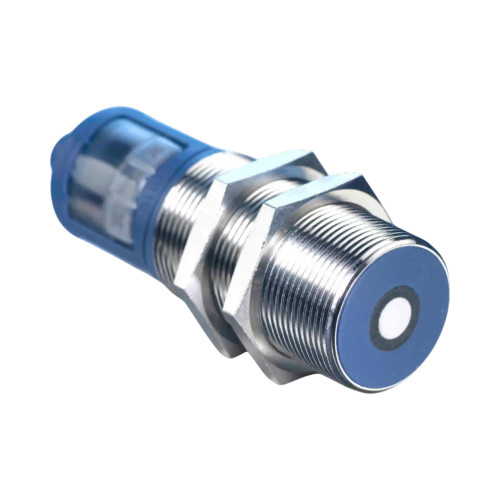

Microsonic mic+340 Ultrasonic Sensor, M30, 350-5000mm Range, Analog 4-20mA/0-10V Output, 9-30V DC, LED Display

PART NO: mic+340/IU/TC / SKU: 1006434

$804.10
inc. GST
$731.00
ex. GST
Free shipping on orders over $100

Explore the Microsonic mic+340 Ultrasonic Sensor (mic+340/IU/TC), a high-performance M30 sensor designed for precise distance measurement.

  • Offers a wide measuring range of 350-5000mm for diverse applications.
  • Features analog 4-20mA/0-10V output options for flexible integration.
  • Equipped with a clear LED display and operates on 9-30V DC power.

Ensure accurate and reliable distance sensing with this advanced Microsonic ultrasonic sensor.

Product Specification

Brand:
Microsonic
Type:
Ultrasonic Sensor
Style:
M30
Length:
102 mm
Accuracy:
±1 %
Function:
Analogue Distance Measurements
IP Rating:
IP67
Resolution:
0.18 to 1.5 mm
Output Type:
Analogue
Model/Series:
mic+
Rated Current:
80 mA
Sensing Range:
350 to 5000 mm
Certifications:
UL
Connection Type:
M12
Housing Material:
Brass Sleeve;Plastic Parts;PBT;TPU
Input Signal Type:
Synchronization
Operating Voltage:
9 to 30 V DC
Display Technology:
LED
Switching Frequency:
120 kHz
Max Operating Temperature:
+70 °C
Min Operating Temperature:
-25 °C
Weight:
210 g

Product Downloads
