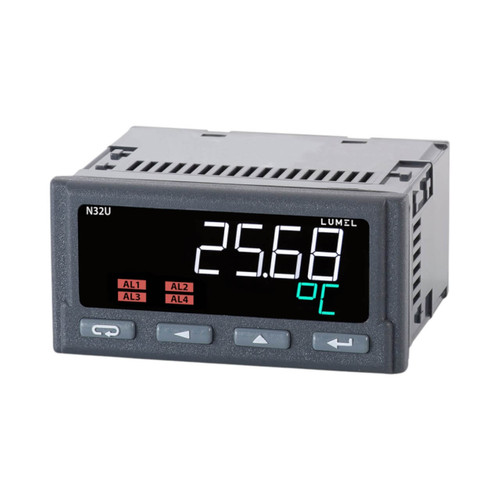

Lumel N32U Digital Panel Meter, Universal Input, 20-40V AC/20-60V DC, RS-485, 4 Relay Outputs, LCD, IP65

PART NO: N32U 230000000M0 / SKU: 1036708
Lumel N32U Digital Panel Meter, Universal Input, 20-40V AC/20-60V DC, RS-485, 4 Relay Outputs, LCD, IP65
$891.00
inc. GST
$810.00
ex. GST
Free shipping on orders over $100

Discover the versatile Lumel N32U 230000000M0 Digital Panel Meter, designed for universal input applications.

  • Features universal input for a wide range of measurements.
  • Equipped with RS-485 communication and 4 relay outputs for flexible control.
  • Boasts an LCD display and IP65 rating for clear readings and robust protection.

Experience precise and reliable monitoring with this advanced Lumel digital panel meter.

Product Specification

Brand:
Lumel
Type:
Programmable Digital Meter
Width:
48 mm
Length:
96 mm
IP Rating:
IP65;IP10
Application:
Industrial
Output Type:
Relay
Model/Series:
N32U
Mounting Type:
Panel Mount
Rated Current:
20 mA
Rated Voltage:
85 to 253 V AC @ 40 to 400 Hz;90 to 300 V DC
Certifications:
CE
Interface Type:
RS485
Display Technology:
LCD
Max Operating Temperature:
+55 °C
Min Operating Temperature:
-25 °C
Height:
93 mm
Weight:
Number of Digits:
6 (1 Row);5 (2 Row)

Product Downloads

Datasheet
