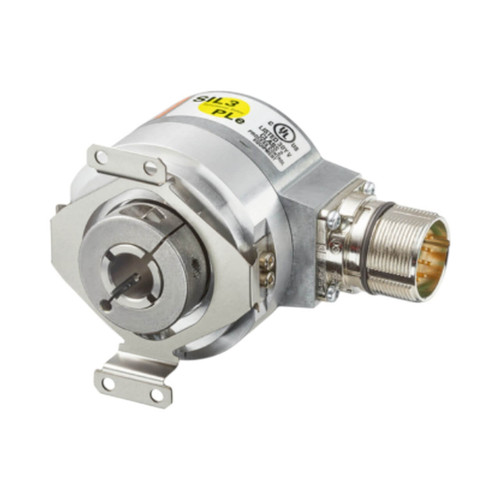

Kubler 5834FS3 Incremental Encoder, 12mm Hollow Shaft, 58mm, SinCos, 2048 PPR, 10-30V DC, M12 12-pin Connector

PART NO: 8.5834FS3.B424.2048 / SKU: 1023819
Kubler 5834FS3 Incremental Encoder, 12mm Hollow Shaft, 58mm, SinCos, 2048 PPR, 10-30V DC, M12 12-pin Connector
$1,786.21
inc. GST
$1,623.83
ex. GST
Free shipping on orders over $100

Discover the Kubler 5834FS3 Incremental Encoder (8.5834FS3.B424.2048), a high-performance solution for precise rotational sensing.

  • Features a 12mm hollow shaft for easy integration.
  • Provides SinCos output with 2048 PPR for accurate measurements.
  • Operates on 10-30V DC power with a reliable M12 12-pin connector.

Experience robust and accurate feedback with this advanced Kubler incremental encoder.

Product Specification

Brand:
Kubler
Type:
Incremental
Diameter:
63
IP Rating:
IP67
Shaft Size:
12 mm
Shaft Type:
Hollow Shaft
Model/Series:
5834FS3
Certifications:
cULus;RoHS
Interface Type:
SinCos
Max Resolution:
2048 pixel
Rotation Speed:
9000 rpm
Supply Voltage:
10 to 30 V DC
Connection Type:
M23
Measurement Type:
Optical
Pulses per Resolution:
2048 PPR
Max Operating Temperature:
+90 °C
Min Operating Temperature:
-40 °C
Height:
56 mm
Weight:
450 g

Product Downloads

Datasheet
