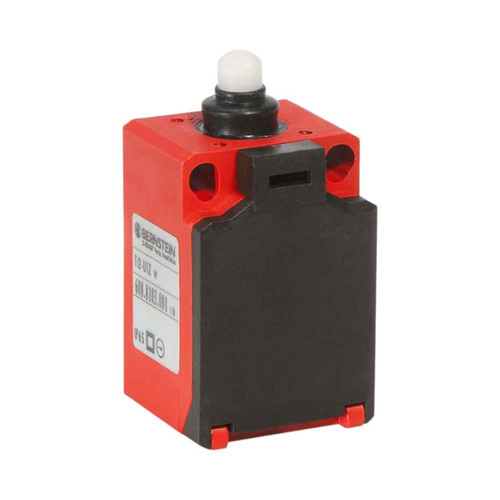

Bernstein AG TI2 Series Plastic Body Limit Switch with Plunger, 1NO/1NC, 10A, 240V AC, M16 Cable Entry, IP65

PART NO: 6088153002 / SKU: 1039618
Bernstein AG TI2 Series Plastic Body Limit Switch with Plunger, 1NO/1NC, 10A, 240V AC, M16 Cable Entry, IP65
$51.70
inc. GST
$47.00
ex. GST
Free shipping on orders over $100

Explore the robust Bernstein AG TI2 Series Plastic Body Limit Switch (6088153002), designed for reliable performance in demanding environments.

  • Equipped with a plunger for precise activation.
  • Features 1 NO/1 NC contacts and a 10A, 240V AC rating.
  • Boasts an M16 cable entry and an IP65 rating for excellent protection.

Ensure dependable control and enhanced safety with this versatile Bernstein AG limit switch.

Product Specification

Brand:
Bernstein
Type:
Limit Switch
Class:
Class II
Width:
27 mm
Length:
30 mm
IP Rating:
IP65
Tolerance:
±10 %
Entry Type:
M16
Model/Series:
Ti2
Actuator Type:
Plunger
Rated Current:
10 A (AC);2.5 A (DC)
Rated Voltage:
240 V AC;250 V DC
Certifications:
VDE 0660 T100;DIN EN 60947-1;IEC 60947-1;VDE 0660 T200;DIN EN 60947-5-1;IEC 60947-5-1;DIN EN ISO 13849-1;cCSAus;cULus;CCC
Component Type:
Actuator
Operation Type:
Snap
Housing Material:
Thermoplastic;Glass Fibre Reinforced
Contact Configuration:
1NC/1NO
Max Operating Temperature:
+80 °C
Min Operating Temperature:
-30 °C
Depth:
57 mm
Weight:
40 g

Product Downloads

Datasheet
