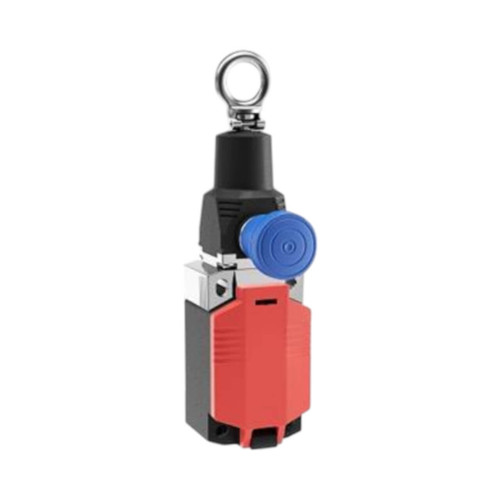

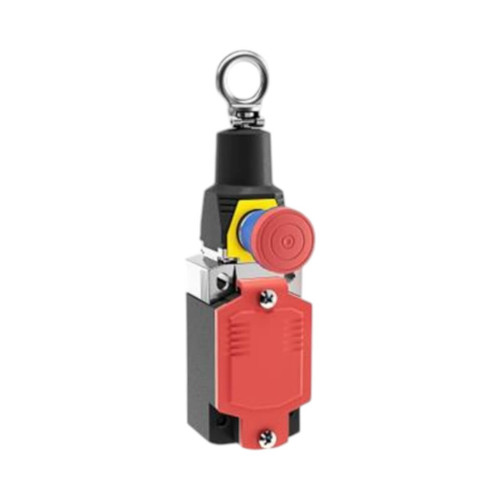

Bernstein AG SRO Safety Rope Pull Switch with Emergency Stop, 2NC/2NO, Pull Ring

PART NO: 6011821133 / SKU: 1038307

$125.40
inc. GST
$114.00
ex. GST
Free shipping on orders over $100

Introducing the Bernstein AG SRO Safety Rope Pull Switch with Emergency Stop (6011821133), a robust solution designed for reliable safety applications.

  • Equipped with a safety rope pull switch for immediate emergency stops.
  • Features 2NC/2NO contacts for versatile wiring configurations.
  • Includes a pull ring for easy and intuitive operation.

Ensure superior safety and operational integrity with this advanced Bernstein AG safety rope pull switch.

Product Specification

Brand:
Bernstein
Type:
Safety Rope Pull Switch
Class:
Class II
Width:
41 mm
Length:
42.50 mm
Frequency:
50 to 60 Hz
IP Rating:
IP67
Button Type:
Emergency Stop Button
Orientation:
Straight
Model/Series:
SRO
Actuator Type:
Pull Ring
Rated Current:
1.50 A
Rated Voltage:
240 V AC;24 V DC
Remote Signal:
Wireless
Certifications:
CCC;cULus;DGUV
Interface Type:
Mechanical Switch
Connection Type:
Screw
Max Rope Length:
30 m
Cable Entry Size:
M20
Housing Material:
Thermoplastic
Rope Connection Type:
Eyelet
Contact Configuration:
2NC/2NO
Max Operating Temperature:
+75 °C
Min Operating Temperature:
-30 °C
Depth:
157.50 mm
Weight:
250 g

Product Downloads
