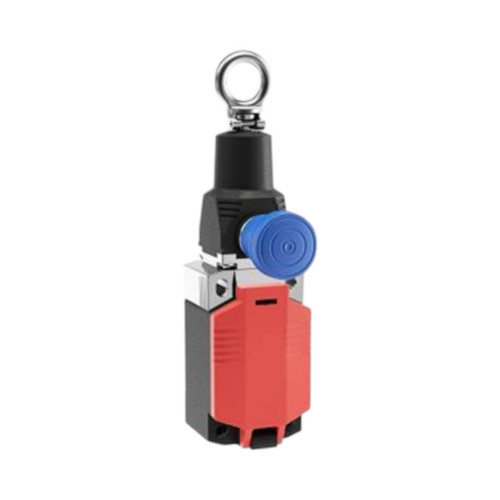

Product Specification
Brand:
Bernstein
Type:
Rope Pull Switch
Class:
Class I
Width:
25 mm
Length:
42.50 mm
Frequency:
50 to 60 Hz
IP Rating:
IP67
Button Type:
Emergency Stop Button
Orientation:
Straight
Model/Series:
SRO
Actuator Type:
Pull Ring
Rated Current:
3 A @ 240 V AC;1.50 A @ 24 V DC
Rated Voltage:
240 V AC;24 V DC
Remote Signal:
Wireless
Certifications:
CCC;cCSAus;DGUV
Interface Type:
Mechanical Switch
Connection Type:
Screw
Max Rope Length:
30 m
Cable Entry Size:
M20
Housing Material:
Thermoplastic
Rope Connection Type:
Eyelet
Contact Configuration:
2NC
Max Operating Temperature:
+75 °C
Min Operating Temperature:
-30 °C
Depth:
161.60 mm
Weight:
310 g
