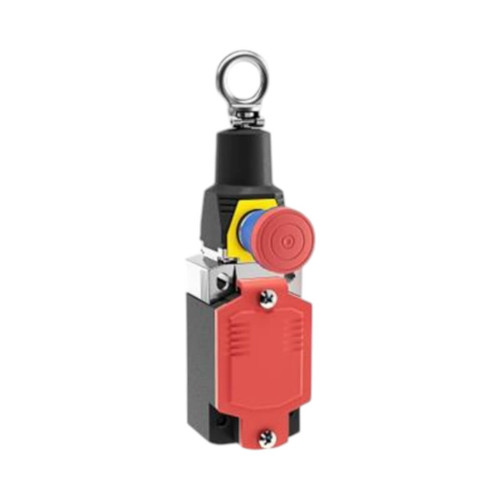

Bernstein AG SRO Safety Rope Pull Switch, 2NC/2NO, 5A, 240VAC/24VDC, Plastic Body, 30m Span Length, IP66/IP67

PART NO: 6011821129 / SKU: 1038306
Bernstein AG SRO Safety Rope Pull Switch, 2NC/2NO, 5A, 240VAC/24VDC, Plastic Body, 30m Span Length, IP66/IP67
$123.20
inc. GST
$112.00
ex. GST
Free shipping on orders over $100

Introducing the Bernstein AG SRO Safety Rope Pull Switch, part number 6011821129. This robust safety switch is designed for reliable operation in demanding environments.


• Features 2NC/2NO contacts for versatile wiring options.
• Operates at 5A, with compatibility for 240VAC/24VDC power.
• Built with a durable plastic body and offers an impressive 30m span length.


Ensure enhanced safety and operational efficiency with this Bernstein AG product.

Product Specification

Brand:
Bernstein
Type:
Rope Pull Switch
Class:
Class II
Width:
41 mm
Length:
42.5 mm
Assembled:
Yes
Frequency:
50 Hz;60 Hz
IP Rating:
IP67;IP66
Entry Type:
M20
Button Type:
Reset Button
Orientation:
Straight
Model/Series:
SRO
Actuator Type:
Pull Ring
Rated Current:
5 A
Rated Voltage:
240 V AC;24 V DC
Remote Signal:
Wireless
Certifications:
DIN EN 60947-5-1;DIN EN 60947-5-5;UL 508 / CSA C22.2 No.14;ISO 13850;DIN EN ISO 13849-1;CCC;cULus;DGUV
Connection Type:
Screw
Max Rope Length:
30 m
Cable Entry Size:
1 x M20 x 1.5
Housing Material:
Thermoplastic;Glass Fibre Reinforced
Rope Connection Type:
Eyelet
Contact Configuration:
2NO/2NC
Max Operating Temperature:
+75 °C
Min Operating Temperature:
-30 °C
Depth:
151 mm
Weight:
250 g

Product Downloads

Datasheet
