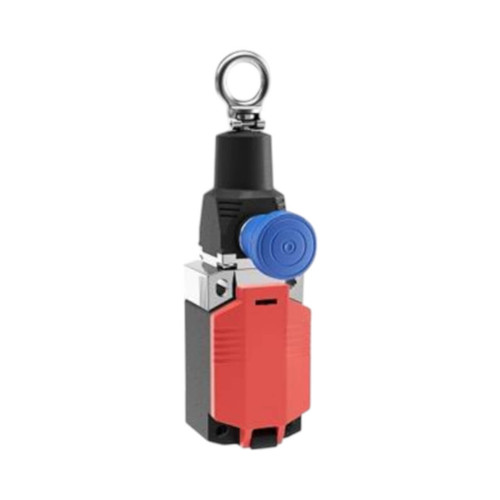

Bernstein AG SR Safety Rope Pull Switch, 2NC/2NO, 10A, 240V, Plastic Body, 37.5m Span, Pull to Reset, IP67

PART NO: 6011621065 / SKU: 1037661
Bernstein AG SR Safety Rope Pull Switch, 2NC/2NO, 10A, 240V, Plastic Body, 37.5m Span, Pull to Reset, IP67
$319.00
inc. GST
$290.00
ex. GST
Free shipping on orders over $100

Discover the Bernstein AG SR Safety Rope Pull Switch (6011621065), a robust solution for reliable safety applications.

  • Equipped with 2NC/2NO contacts and a 10A, 240V rating for versatile power compatibility.
  • Features a durable plastic body and a 37.5m span for extensive coverage.
  • Offers pull to reset functionality and an IP67 rating for excellent protection in demanding environments.

Ensure superior safety and operational integrity with this advanced Bernstein AG safety rope pull switch.

Product Specification

Brand:
Bernstein
Type:
Rope Pull Switch
Class:
Class II
Width:
45 mm
Length:
42.5 mm
Assembled:
Yes
IP Rating:
IP67
Entry Type:
M20
Button Type:
Reset Button
Orientation:
Straight
Model/Series:
SR
Actuator Type:
Rope Pull
Rated Current:
10 A
Rated Voltage:
240 V
Remote Signal:
Wireless
Certifications:
VDE 0660 T100;DIN EN 60947-1;IEC 60947-1;VDE 0660 T200;DIN EN 60947-5-1;IEC 60947-5-1;VDE 0660 T210;DIN EN 60947-5-5;IEC 60947-5-5;ISO 13850;DIN EN ISO 13849-1;DGUV;CCC;CCSAUS
Connection Type:
Cage Clamp
Max Rope Length:
37.5 m
Cable Entry Size:
3 x M20 x 1.5
Housing Material:
Polyamide
Rope Connection Type:
Eyelet
Contact Configuration:
2NO/2NC
Max Operating Temperature:
+70 °C
Min Operating Temperature:
-25 °C
Depth:
224 mm
Weight:
480 g

Product Downloads

Datasheet
