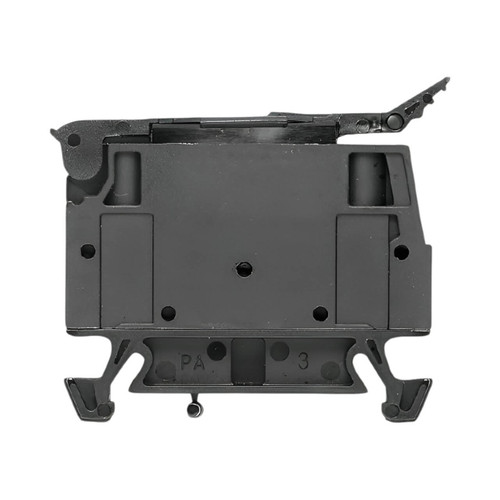

Product Specification
Brand:
Weidmuller
Type:
Fuse Terminal
Width:
9.1 mm
Colour:
Black
Function:
Single Level Feed Through
Material:
Wemid
Fuse Type:
6.3 x 32 mm
Blade Size:
0.6 x 3.5 mm
Cable Size:
12 to 6 AWG
Model/Series:
WSI
Mounting Type:
TS35 Rail Mount;TS32 Rail Mount
Rated Current:
10 A
Rated Voltage:
36 V AC/DC
Certifications:
CE;CSA;cURus;Lloyds Register;RoHS
Connection Type:
Screw
Number of Levels:
1
Stripping Length:
11 mm
Max Clamping Range:
6 mm²
Min Clamping Range:
0.5 mm²
Wire Cross Section:
4 mm²
Connection Direction:
On Side
Number of Connections:
2
Max Operating Temperature:
+120 °C
Min Operating Temperature:
-50 °C
Depth:
53.5 mm
Height:
81.6 mm
Weight:
22.8 g
Model Part Code:
WSI 4/2/LD 10-36V AC/DC
