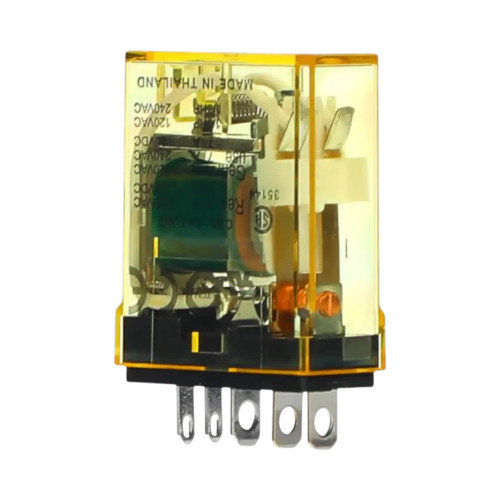

IDEC RH1B General Purpose Relay, SPDT, 10A, 24V DC Coil, Plug-In, Blade Terminals, with Diode

PART NO: RH1B-UD-DC24V / SKU: 1002506
IDEC RH1B General Purpose Relay, SPDT, 10A, 24V DC Coil, Plug-In, Blade Terminals, with Diode
$14.30
inc. GST
$13.00
ex. GST
Free shipping on orders over $100

Discover the versatile IDEC RH1B-UD-DC24V General Purpose Relay, engineered for reliable performance in various applications.

  • Features a SPDT (Single Pole Double Throw) configuration, offering flexible switching capabilities.
  • Rated for 10A, making it suitable for a wide range of electrical loads.
  • Equipped with a 24V DC coil, plug-in design, and blade terminals for easy installation, including an integrated diode for protection.

This IDEC relay provides a robust and efficient solution for your electrical control needs.

Product Specification

Brand:
Idec
Type:
Power Relay
Width:
14 mm
Colour:
Transparent
Length:
27.5 mm
Wattage:
0.8 W
Test Button:
No
Coil Voltage:
24 V DC
Model/Series:
RH
Release Time:
20 ms
Mounting Type:
Socket Mount
Rated Current:
10 A
Rated Voltage:
240 V AC
Terminal Type:
Blade Terminal
Certifications:
cURus;CSA;TUV;CE
Operating Time:
20 ms
Connection Type:
Blade Terminal
Control Voltage:
24 V DC
Mechanical Life:
50000000 cycles
Contact Material:
AgCdO
Status Indicator:
No
Number of Contacts:
1
Contact Configuration:
1CO
Protective Circuit Type:
Diode
Rated Switching Current:
10 A
Rated Switching Voltage:
240 V AC;30 V DC
Max Operating Temperature:
+70 °C
Min Operating Temperature:
-25 °C
Height:
35.6 mm
Weight:
24 g

Product Downloads

Datasheet
