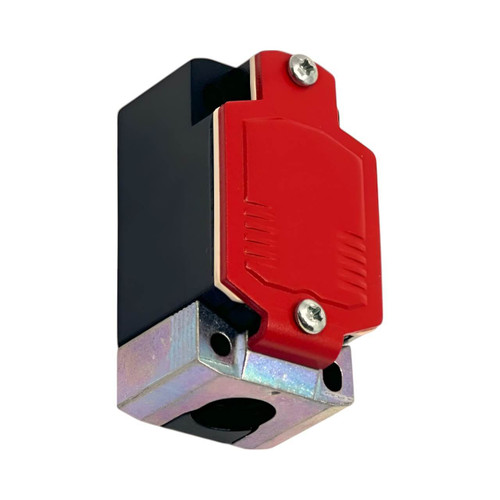

Bernstein AG MN78 Metal Body Limit Switch, 1NO/1NC, 5A, 240VAC/24VDC, Metal Plunger, M20 Cable Entry, IP67

PART NO: 6087000001 / SKU: 1039319
Bernstein AG MN78 Metal Body Limit Switch, 1NO/1NC, 5A, 240VAC/24VDC, Metal Plunger, M20 Cable Entry, IP67
$86.90
inc. GST
$79.00
ex. GST
Free shipping on orders over $100

Explore the Bernstein AG MN78 Metal Body Limit Switch (6087000001), a reliable solution for industrial applications.

  • Features a 1NO/1NC contact configuration with a 5A rating for 240VAC/24VDC.
  • Equipped with a durable metal plunger and an M20 cable entry for secure connections.
  • Boasts an IP67 rating, ensuring excellent protection against dust and water in demanding environments.

Ensure robust performance and safety with this advanced Bernstein AG limit switch.

Product Specification

Brand:
Bernstein
Type:
Limit Switch
Class:
Class I
Width:
44.5 mm
Length:
42.5 mm
Frequency:
50 Hz;60 Hz
IP Rating:
IP66;IP67
Tolerance:
±15 %
Entry Type:
M20
Model/Series:
MN78
Actuator Type:
Plunger
Rated Current:
5 A
Rated Voltage:
240 V AC;24 V DC
Certifications:
DIN EN 60947-5-1;UL 508 / CSA C22.2 No.14;DIN EN ISO 13849-1;DIN EN ISO 13849-2;CCC;cULus
Component Type:
Actuator
Operation Type:
Snap
Housing Material:
Die Cast Aluminium
Contact Configuration:
1NO/1NC
Max Operating Temperature:
+75 °C
Min Operating Temperature:
-30 °C
Depth:
108.3 mm
Weight:
220 g
