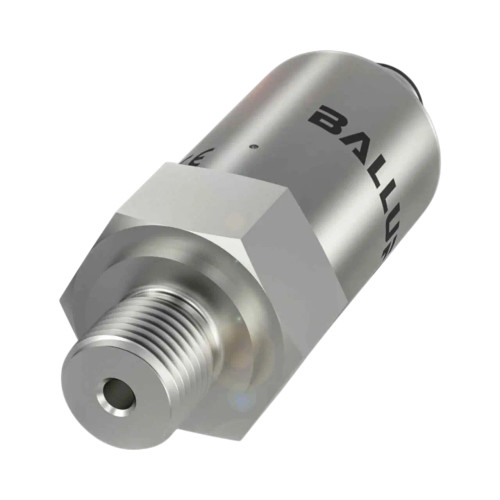

Product Specification
Brand:
Balluff
Type:
Pressure Sensor
Length:
71.5 mm
Accuracy:
±0.5 %
IP Rating:
IP67
Output Type:
Analogue
Rated Current:
25 mA
Certifications:
CE;UKCA;cULus;WEEE
Supply Voltage:
8 to 32 V DC
Analogue Output:
4 to 20 mA
Connection Type:
M12
Max Pressure Range (Bar):
10 Bar
Max Pressure Range (psi):
145 psi
Min Pressure Range (Bar):
0 Bar
Max Operating Temperature:
+85 °C
Min Operating Temperature:
-25 °C
Weight:
120 g
Model Part Code:
BSP B010-DV004-A06A1A-S4
