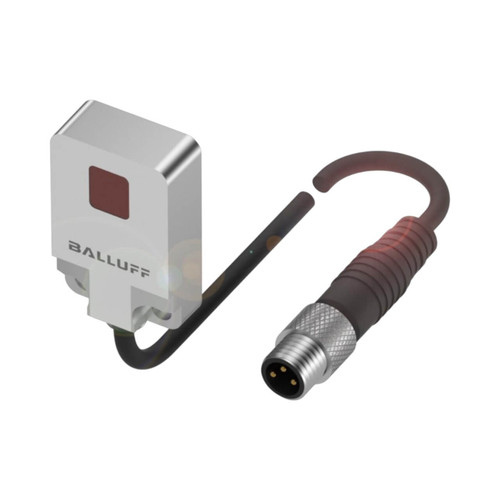

Product Specification
Brand:
Balluff
Type:
Retroreflective Sensor
Width:
20 mm
Length:
32 mm
Frequency:
500 Hz
IP Rating:
IP67
Light Type:
LED
Output Type:
PNP
Light Colour:
Red
Model/Series:
BOS
Rated Current:
100 mA
Sensing Range:
1000 mm
Certifications:
CE;UKCA;cULus;Ecolab;WEEE
Connection Type:
3-Pin M8 x 1 Male Connector
Light Spot Size:
3.00 mm
Output Function:
NO
Housing Material:
Stainless Steel
Operating Voltage:
10 to 30 V DC
Sensing Surface Material:
PA
Max Operating Temperature:
+55 °C
Min Operating Temperature:
-5 °C
Model Part Code:
BOS R01E-PS-KR20-00,2-S49
