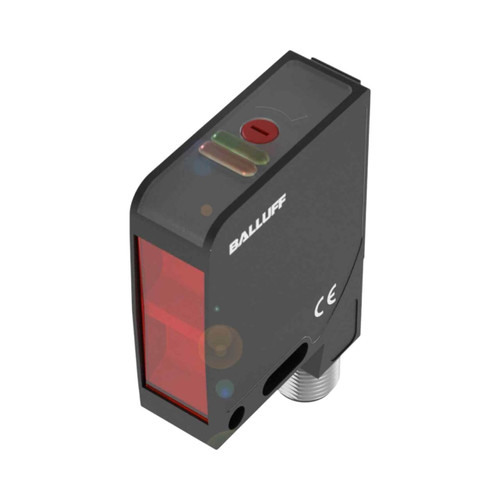

Product Specification
Brand:
Balluff
Type:
Diffuse Sensor
Style:
Square
Width:
15 mm
Length:
42.5 mm
Frequency:
500 Hz
IP Rating:
IP67
Adjustable:
Yes
Light Type:
LED
Application:
Industrial
Output Type:
PNP
Light Colour:
Red
Model/Series:
21M
Rated Current:
100 mA
Sensing Range:
1 to 400 mm
Certifications:
CE;UKCA;cULus;WEEE
Connection Type:
M12
Light Spot Size:
6 x 6 mm
Output Function:
NO/NC
Housing Material:
Die Cast Zinc
Installation Type:
Screw Mount
Operating Voltage:
10 to 30 V DC
Sensing Surface Material:
Glass
Max Operating Temperature:
+55 °C
Min Operating Temperature:
-5 °C
Height:
68 mm
Model Part Code:
BOS 21M-PA-RH22-S4
