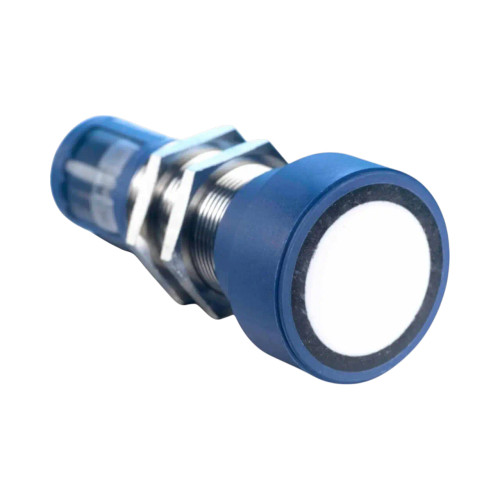

Microsonic mic+340 Ultrasonic Sensor, M30, 350-5000mm Range, PNP NO/NC, 9-30V DC, LED Display, M12 Connector

PART NO: mic+340/D/TC / SKU: 1013963
Microsonic mic+340 Ultrasonic Sensor, M30, 350-5000mm Range, PNP NO/NC, 9-30V DC, LED Display, M12 Connector
$453.20
inc. GST
$412.00
ex. GST
Free shipping on orders over $100

Discover the Microsonic mic+340 Ultrasonic Sensor, a high-performance solution for precise distance measurement.

  • Features a wide range of 350-5000mm for versatile applications.
  • Equipped with PNP NO/NC output and operates on 9-30V DC.
  • Includes an LED display and an M12 connector for easy integration.

Ensure accurate and reliable sensing with the Microsonic mic+340.

Product Specification

Brand:
Microsonic
Type:
Ultrasonic Sensor
Style:
M30
Length:
102 mm
Accuracy:
±1 %
Function:
Proximity
IP Rating:
IP67
Resolution:
0.18 mm
Output Type:
PNP
Model/Series:
mic+
Rated Current:
80 mA
Sensing Range:
350 to 5000 mm
Certifications:
UL
Connection Type:
M12
Output Function:
NO/NC
Housing Material:
Brass Sleeve;Plastic Parts;PBT;TPU
Input Signal Type:
Synchronization
Operating Voltage:
9 to 30 V DC
Display Technology:
LED
Switching Frequency:
120 kHz
Max Operating Temperature:
+70 °C
Min Operating Temperature:
-25 °C
Weight:
210 g

Product Downloads

Datasheet
