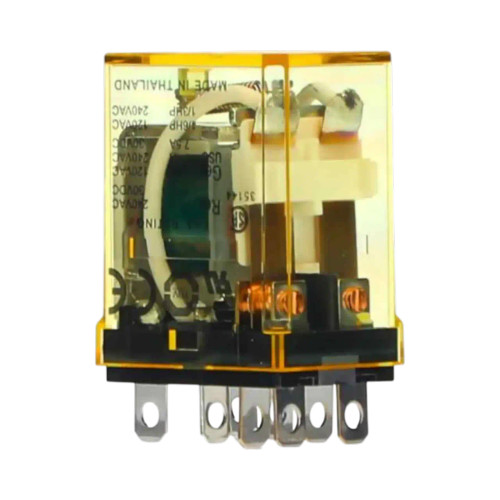

IDEC RH2B General Purpose Relay, DPDT, 10A, 12V DC Coil, Plug-In, Blade Terminals, with LED Indicator

PART NO: RH2B-ULDC12V / SKU: 1002535
IDEC RH2B General Purpose Relay, DPDT, 10A, 12V DC Coil, Plug-In, Blade Terminals, with LED Indicator
$34.65
inc. GST
$31.50
ex. GST
Free shipping on orders over $100

Discover the versatile IDEC RH2B General Purpose Relay (RH2B-ULDC12V) from Idec, a reliable solution for various electrical applications.

  • Features a DPDT configuration for double pole, double throw switching.
  • Rated for 10A, ensuring robust performance in demanding circuits.
  • Equipped with a 12V DC coil, plug-in design, blade terminals, and an LED indicator for easy status monitoring.

Ensure dependable and efficient operation in your systems with this high-quality Idec general purpose relay.

Product Specification

Brand:
Idec
Type:
Power Relay
Width:
21 mm
Colour:
Transparent
Length:
27.5 mm
Wattage:
0.9 W
Test Button:
No
Coil Voltage:
12 V DC
Model/Series:
RH
Release Time:
20 ms
Mounting Type:
Socket Mount
Rated Current:
10 A
Rated Voltage:
240 V AC
Terminal Type:
Blade Terminal
Certifications:
cURus;CSA;TUV;CE
Operating Time:
20 ms
Connection Type:
Blade Terminal
Control Voltage:
12 V DC
Mechanical Life:
50000000 cycles
Contact Material:
AgCdO
Status Indicator:
Yes
Number of Contacts:
2
Contact Configuration:
2CO
Rated Switching Current:
10 A
Rated Switching Voltage:
240 V AC;30 V DC
Max Operating Temperature:
+70 °C
Min Operating Temperature:
-25 °C
Height:
35.6 mm
Weight:
37 g

Product Downloads

Datasheet
